Separating RGB Channels in a Clip




Use the Separate command to separate the red, green, and blue channels of a clip. A monochrome clip containing the information from the selected colour channel only appears. For example, to generate a clip containing the red channel information of a source clip, select Red.

To separate colour channels:

  1. In the Main menu, click Format.
  2. In the Format menu, click Separate.

    The Channel box appears.

  3. Select the channel you want to separate from the Channel box.

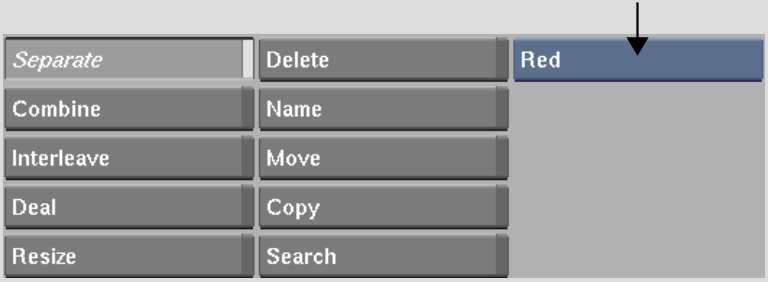

    Show small imageShow large image

    Select: To generate:
    Red A monochrome clip containing only red channel information.
    Green A monochrome clip containing only green channel information.
    Blue A monochrome clip containing only blue channel information.
    All Three monochrome clips: one for each channel.
  4. Select the source clip.
  5. Select the destination reel.
  6. The clip(s) are generated and appear on the destination reel.
