Before you create a mask, set the options according to how you want to draw and display the mask.

To set the drawing options:

1. Do one of the following:

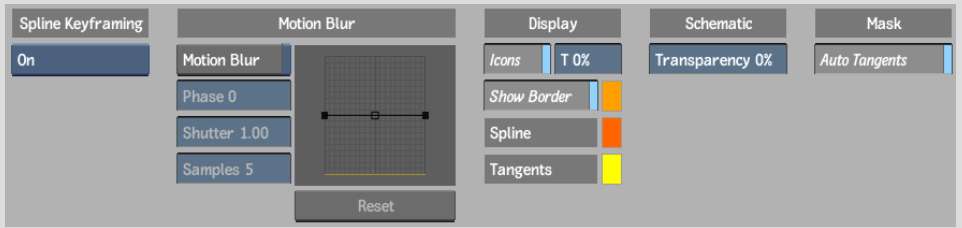

   • In the Garbage Mask menu accessed from the Keyer, click Mask Setup.

     The Garbage Mask Setup menu appears.




   • In the Garbage Mask menu accessed from the GMask node in Batch or the Modular Keyer, click Node Setup.

     The Garbage Mask Setup menu appears.

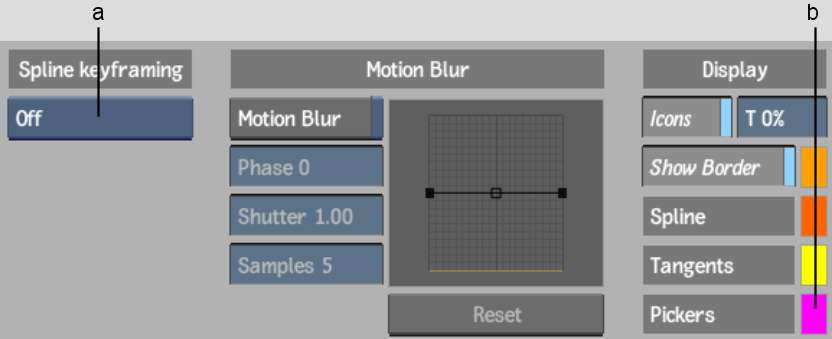

   (a) Spline Keyframing box  (b) Pickers Display colour pot  

2. Set drawing options. See About Drawing Options.
