Colour Correcting the Front Clip




You can use the Colour Corrector to correct the front clip and improve the look of the key.

To colour correct the front clip:

  1. Click the CCF button in the Keyer or Colour menu to bring the front clip into the Colour Corrector.

    Show small imageShow large image

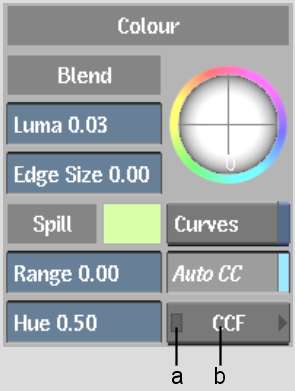

    (a) Indicator  (b) CCF button  

    When a colour correction is made, a blue indicator appears on the CCF button.

    NoteTo view the colour correction you apply to the front clip, make sure Result is selected as the view output option. If the Front and Adjust buttons are both enabled, the colour curves are applied first, and then the colour correction setup.
  2. Do one of the following:
    • To disable the colour correction, click the blue indicator on the CCF button.

      The indicator turns yellow, showing that there is a colour corrector setup available but it is currently disabled.

    • To remove the colour corrector setup completely, hold Alt while clicking the CCF button.
