The Destination settings define the format of the resized clip.

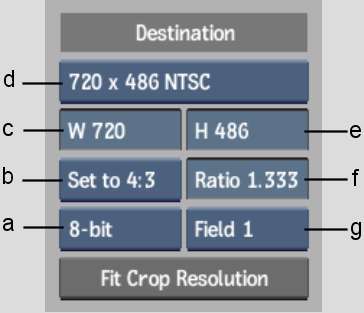

The following Destination settings are displayed in the Resize module.

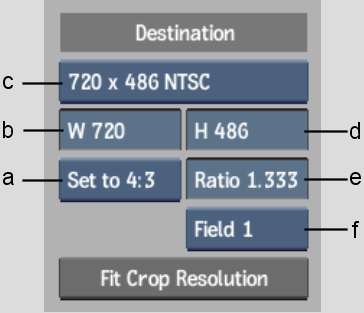

The following Destination settings are displayed in the BFX Output node and in the Output Batch node.

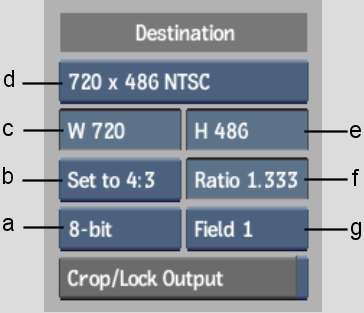

The following Destination settings are displayed in the Resize Batch node.

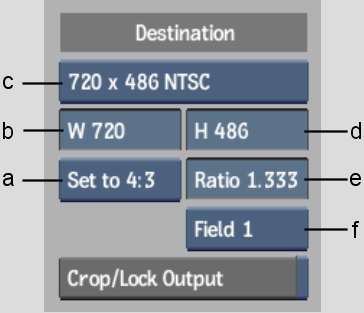

The following settings are displayed for resizing from clips in Batch or in the Export Batch node.

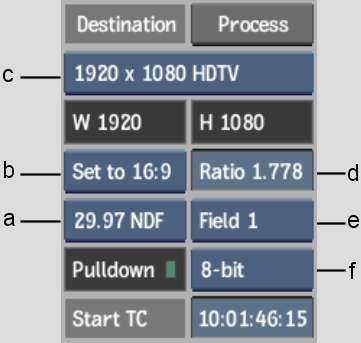

The following Destination settings are displayed in Real Time Deliverables.

The following Destination settings are displayed in the Resize soft effect.

Fit Crop Resolution button Adjusts the destination resolution to fit the current crop box.

Crop/Lock Output button Enable to have the destination resolution per frame match the crop box. Use this option to animate the resolution of a clip. This option is only available when you access Resize settings from Batch nodes. See Animating Resize Settings.

Pulldown boxEnable to add pulldown in the destination clip.

Frame Depth box Provides five frame depth options.

Resolution Presets box Provides options for many standard resolutions, as well as a Custom option that you can use to specify non-standard resolutions.

Width/Height fields Display the frame width and height of the selected resolution preset. If you select Custom from the Resolution Presets box, use these fields to enter the frame width and height values you want to use.

Aspect Ratio Presets box Provides standard frame aspect ratio options as well as a w:h option to set the clip to use square pixels. Also provides a Custom option so you can enter a custom frame aspect ratio in the Ratio field.

Scan Mode box Select an option to set the order in which the fields of interlaced material are scanned.

For interlaced material, you can specify whether the resize needs to be done from both fields or just from one of the two. In the latter case, the result is a progressive clip made from the same two fields.

Ratio fieldEnter a custom frame aspect ratio in this field, if necessary.
