Relinking to File-based Media




If, in Final Cut Pro, you edited sequences using file-based media, such as QuickTime movies, you can then relink the exported XML to these files in Smoke.

Verify that the files you are relinking to are supported in Smoke. See Supported File Formats.

You can relink imported FCP XML files to file-based video or audio media.

If you are importing FCP XML with Varicam support, it will be identified as such in the Source Type box.

To relink FCP XML to file-based media:

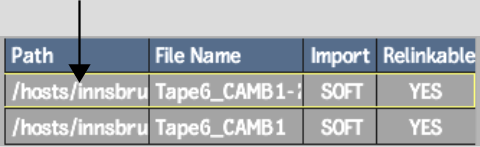

  1. Ensure that the path to your media files is correct. To change the path, drag to select the media segments in the list, and then click in the Path field.

    Show small imageShow large image

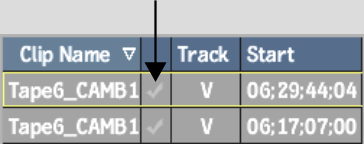

    Once the path is correct, the Found field will display a checkmark for each segment found.

    Show small imageShow large image

  2. If you want to soft-import the media files, drag to select the segments in the list and then, in the Import column, drag left or right to toggle between SOFT and HARD.
    NoteNot all files can be soft-imported (for example, audio files at 44.1 kHz).

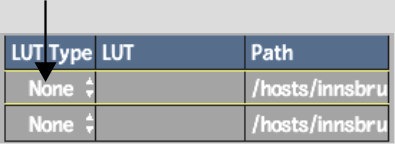

  3. Optional: If you want to apply a LUT or gamma correction to your media files, drag to select the segments in the list and then, from the LUT Type column, select an option.

    Show small imageShow large image

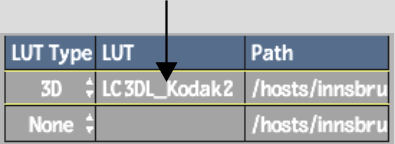

    If you selected 1D LUT or 3D LUT for LUT Type, click in the LUT column to choose a specific LUT name.

    Show small imageShow large image

    The LUT file name appears in the LUT column.

  4. Click Import All Files.

    All the files are now imported or soft-imported but not yet relinked. The Relinkable column displays whether the file is relinkable.

  5. Ensure that all media files are relinkable. Click the Relinkable header to sort the list and group any NOs at the top.

    Some files that are not relinkable may only need to be resized so as to be compatible. For example, the Soft Resize feature allows you to import Quicktime files, included with the FCP XML, at 720x480 instead of the usual NTSC 720x486.

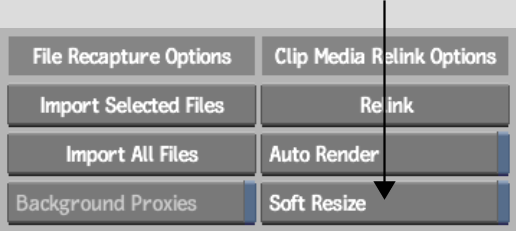

  6. Select the files that are not relinkable, enable Soft Resize, and then click Import Selected Files.

    Show small imageShow large image

    If the files are still not relinkable then they cannot be soft-imported. Try to import the files normally, or check with your system administrator.

  7. Click Relink.

    A new reel with the XML filename is created in the clip library for each imported XML file. The assembled clip in the new reel has the same name as the original FCP sequence.
