Accessing the Channel Editor

Accessing the Channel Editor

Creating Animations



Animation and Expressions > Animation > Accessing the Channel Editor >

Accessing Channel Views from Viewports

Any of the Channel Editor's views can also be displayed in a viewport.

In a multiple viewport setup, you can display multiple channel views simultaneously. Multiple viewports are available in the Colour Corrector, Action, Batch, and Resize. See Displaying Multiple Views.

For example, in a 3-Up view, you can display your clip in one viewport, the Animation Curve window in another viewport, and the Track Editor in the third. This way, you can perform functions unique to a channel view, such as adjusting tangents in the Animation Curve window, while coordinating channels in time in the Track Editor, without having to constantly switch channel views.

To display channel views in a viewport:

1. Select a viewport.

   The selected viewport's border turns yellow.

2. Do one of the following:

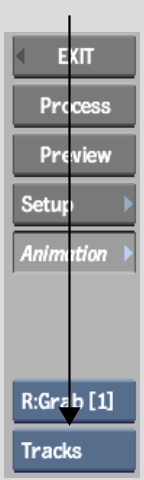

   • From the View box, select a channel view.




   • Press F5 to cycle through channel views.
   NoteYour edits in one animation view are immediately reflected in all channel views that are displayed.
