Batch Processing > Batch Overview > Viewing the Batch Schematic >
Viewing the Batch Schematic Work Area

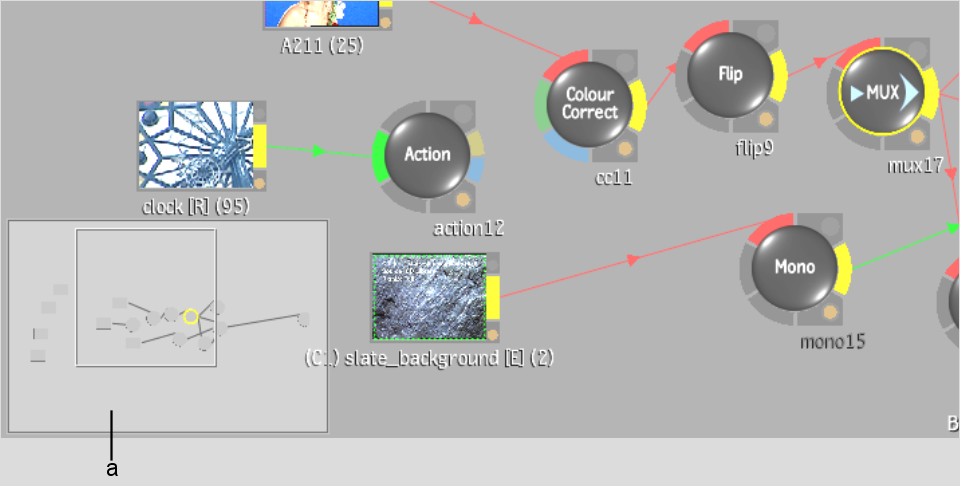

You can enable a schematic navigator that provides a big picture of all the nodes in the work area. The navigator appears as a mini-map of all nodes, and contains a thin, grey rectangle showing the current view area.

Show small imageShow large image

(a) Schematic navigator  

To move in the Batch schematic view using the navigator:

  1. Press Ctrl+Alt+N.

    The navigator appears.

  2. From the Batch Setup menu, click an area in the navigator to move the current view to that area of the schematic work area.
  3. Alt+click to move the navigator window within the schematic work area.
