Effects > Warper > Creating Meshes >
Adding Patches




As you build the mesh, you may need to add patches to cover more of the image.

To add patches:

  1. In the Warper menu, click Add Mesh.
  2. To add only one patch, click the edge of the patch that is closest to where you want to add a patch.

    The new patch is approximately the size of the adjacent patch.

  3. To add several patches, drag from the edge of an existing patch over the area in which to add patches.

    Each new patch added is approximately the size of its adjacent patch.

Deleting Patches

You can delete patches if you make a mistake while creating the mesh.

To delete patches:

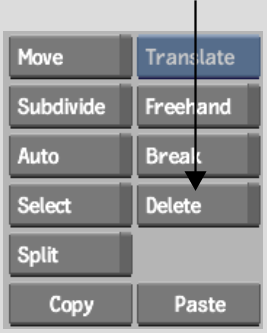

  1. In the Warper menu, click Delete.

    Show small imageShow large image

  2. To delete a patch that lies along the boundary of the mesh, click the middle of the patch.
  3. To delete a line that connects two patches that are not along the boundary, click both sides of the line.
