3ds Max Cameras




An alternative to animating a camera's position is to import a camera animation from 3ds Max. 3ds Max camera animation can be saved as a . 3DS or .ase (ASCII Scene Export) file in your scene. While the .ase format contains only a camera's positional data, the .3DS format contains the camera's position, point of interest, roll and field of view values.

Once the camera is imported, you can edit any of the camera's values and, if necessary, export it back to 3ds Max in its native 3DS format using the Camera menu.

Show small imageShow large image

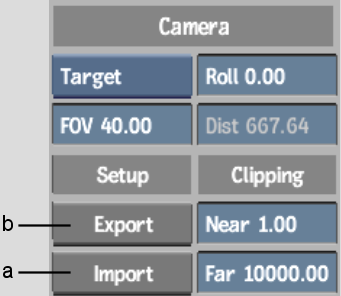

(a) Import Camera button  (b) Export Camera button 

To import a 3ds Max camera:

  1. In the Camera menu, click Import.

    The Import Camera file browser appears.

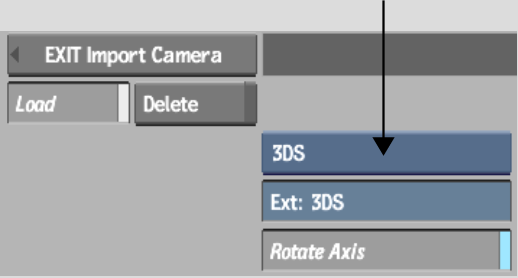

  2. From the Import Type box, select either the .3DS or .ase format.

    Show small imageShow large image

  3. If needed, enable Rotate Axis to rotate the imported camera by 90° on the X-axis so that it is compatible with Action's coordinate system.
  4. Navigate to the location where a 3ds Max camera setup was exported, and select the file.

    You return to Action and the imported camera is applied to your scene.

To export a camera to 3ds Max format:

  1. Select the camera you want to export.

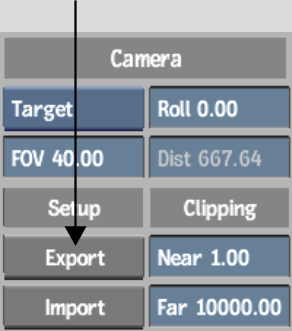

  2. In the Camera menu, click Export.

    Show small imageShow large image

    The Export Camera file browser appears.

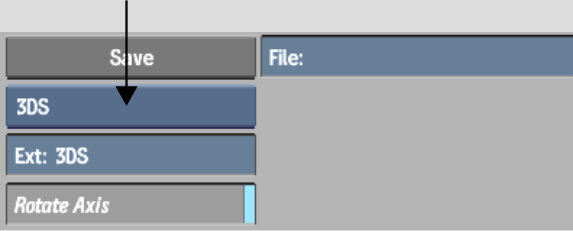

  3. From the Export Type box, select 3DS.

    Show small imageShow large image

  4. If needed, enable Rotate Axis to rotate the exported camera by -90° on the X-axis so that it is compatible with the coordinate system of the 3D application.
  5. Navigate to the location where you want to export the camera animation.
  6. Enter a name for your exported camera in the file field.
  7. Click Save.
NoteWhen exporting from Flame, save the .3DS file in a directory that is readable by a 3ds Max system.
