Use the Coloured Frame command to generate a clip with one or more identical frames of a solid colour, noise, or SMPTE or PAL colour bars.
The Coloured Frame menu appears.

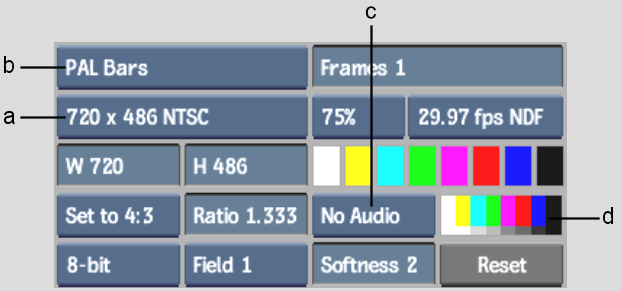

(a) Frame Number field (b) Frame Mode box (c) Current audio tone (d) Current Colour pot
Select: | To generate frames of: |
---|---|
Colour | A solid colour. |
Noise | Video static noise. |
Colour Noise | Colour video static noise. |
SMPTE Bars | SMPTE standard colour bars. |
PAL Bars | PAL standard colour bars. |
Select: | To generate: |
---|---|
10 kHz Tone | A colour source with a 10 kHz tone. |
1 kHz Tone | A colour source with a 1 kHz tone. |
400 Hz Tone | A colour source with a 400 Hz tone. |
60 Hz Tone | A colour source with a 60 Hz tone. |
Silence | A colour source with empty audio tracks. |
No Audio | A colour source without audio. |

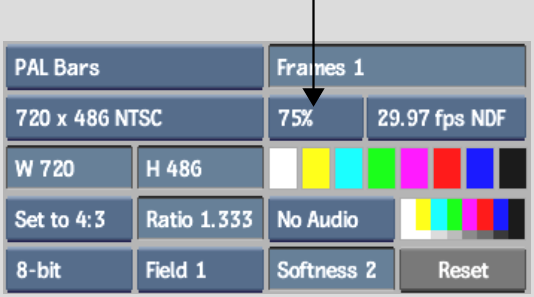

If the Frame Mode is set to PAL Bars or SMPTE Bars, set the following options:
