3D Compositing with Action > Action: Basics > Saving, Loading, and Importing >
Importing Photoshop Files into Action




You can import Adobe Photoshop format files into Action without having to convert them into a TIFF or other format. Once imported, the PSD file keeps its inherent layer structure, which can be used or modified within Flame.

You also have the option of automatically importing all the layers at their native resolution. Each layer is parented by an axis that gives it the correct offset in the X and Y axes. Hidden layers are imported, but will remain hidden. When possible, Action blend modes are used to simulate the Photoshop blend modes, such as blur and multiply.

To import a PSD file into Action:

  1. From the Action Node bin, double-click the Import node.

    The file browser appears.

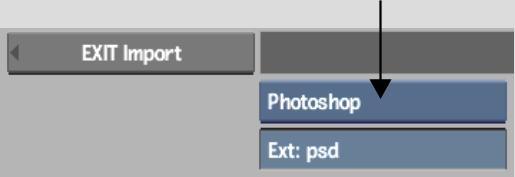

  2. From the Import Type box, select the Photoshop format.

    Show small imageShow large image

  3. Select a .psd format file.
  4. Click Load.

    The Photoshop file is loaded into Action. Each layer is parented by an axis, and blend modes are simulated. A reel is also created in the current clip library with the name of the Photoshop file, and all of the Photoshop layers saved to it.

    NoteIf the current clip library is read only, a warning appears indicating that the PSD file can be imported, but the clips are not saved to the clip library.
