Saving the Key Setup




You can save a key setup that includes the settings in all nodes used to create the key. You can save part of a setup and reload it, or load and save nodes separately. To do this, enable All or Selected (proxies are not saved when using the selection options). You can also load setups using the Replace and Append options.

For Modular Keyer setups that contain RGB Blur and Edge nodes, width and height values are scaled according to the clip resolution of the current session.

To save the key setup:

  1. Click Setup in the Modular Keyer menu.

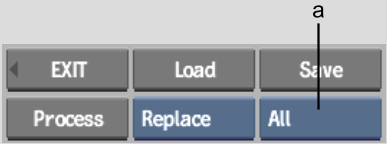

    The Setup menu appears.

    Show small imageShow large image

    (a) Save option box  

  2. From the Save option box, select All or Selected.
  3. Click Save. See Saving Setups and Preferences.
    TipYou can go directly to the Load Setup browser by holding Alt when you drag a node to the Desktop.
