Warping the Image
Using Special Effects Media
Using Wipe, Fill, and AutoPaint
Washing and Shading the Image
Use the Wash medium to apply a transparent wash
of the current colour to the image. Use the Shade medium to darken
or lighten the image. You can wash or shade specific areas using
the brush or the entire image using the Wipe command.
With the Shade medium, you darken images using
a colour with a low luminance value, and lighten them using a colour
with a high luminance value. The opacity of the brush affects the
transparency of the paint applied to the image. When the opacity
value is set to 100%, the paint applied is completely opaque. As
you decrease the opacity, the paint becomes more transparent.
Selecting a Colour Model

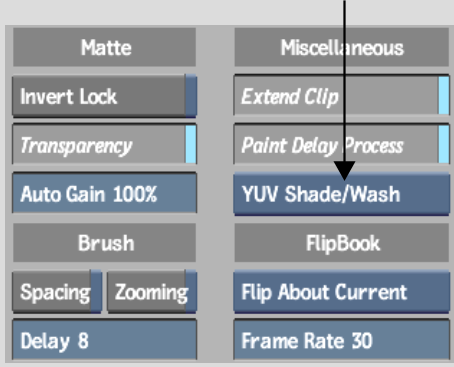

You can apply the colour using either the YUV
or HLS.
To
select a colour model:
- Click
Setup.
- Select
either YUV Shade/Wash or HLS Shade/Wash.
To
use Wash or Shade:
- Click
Custom, and select Wash or Shade from the Custom Media box.
- Click
Canvas.
- Set
the current colour.
- Set
the brush opacity.
- Paint
on the image.
|
|
|

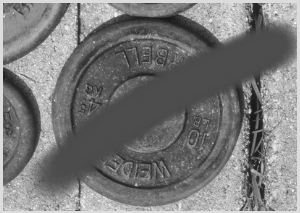

A paint stroke using the Paint medium, current colour
red.
|

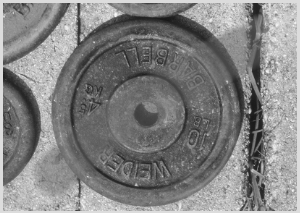

A paint stroke using the Wash medium, current colour
red.
|

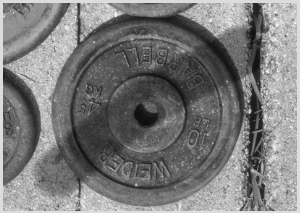

A paint stroke using the Shade medium, current colour
red.
|
