Working with EDLs > Importing AAF Files >
Importing AAF Files




Import AAF sequences from Avid in the same way that you import an EDL. Each AAF file corresponds to a sequence that can be opened in the timeline, including video and audio layers, and select transitions and effects. Some unsupported effects are marked with comments indicating what you have to rebuild in Flame based on the original offline edit.

Avid can support 720/24p, 720/30p, and 720/60p output from Varicam to create AAF files. The timecode of the source is always 59.94 but the timelines can be 24p, 30p, or 60p.

Flame has the ability to conform AAF (23.976/29.97/59.94) from Varicam material (23.976/29.97/30/59.94/60). Flame can also remove non-active frames when capturing Varicam media. The source material must be at the same framerate as the sequence (for example, 23.97 in a 23.97 sequence).

After importing an AAF file, you recapture the footage from the original tapes using the Recapture tool. You can also reload file-based media. Once all the media is captured or reloaded, it is relinked to the sequence.

When importing AAF files that were created in SD resolution and that need to be conformed in HD, you will need to reformat the clips. See Reformatting Clips.

A new reel with the AAF filename is created in the clip library for each imported AAF file. The assembled clip in the new reel has the same name as the original AAF sequence.

To import an AAF file:

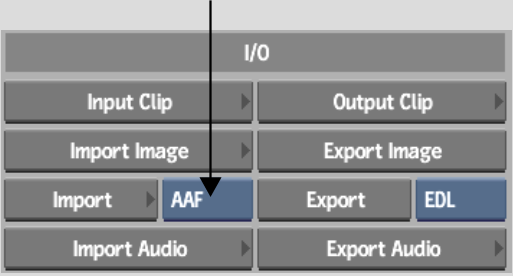

  1. In the Clip Library menu, from the Interchange Format box, select AAF.

    Show small imageShow large image

  2. Click Import.
  3. In the file browser, navigate to an AAF file exported from an Avid application.
  4. Click Load.

    The Recapture menu appears.

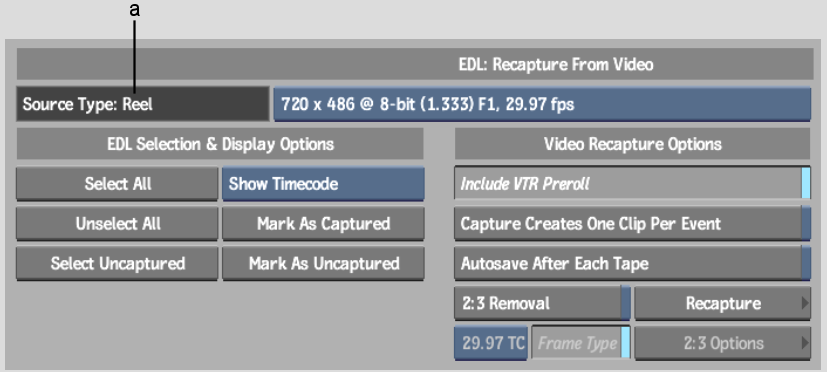

    Show small imageShow large image

    (a) Source Type box  

    If you edited with tapes in Avid, a list of source tapes in the tape list as previously logged, is displayed. In this case, the tape names correspond to the original names you entered in the Reel field for each clip.

    If you edited with files in Avid, a list of files also appears in the Relink area of the Recapture menu. See Relinking to File-based Media.

    If you are importing an AAF file with Varicam support, it will be identified as such in the Source Type box.

To recapture media from tape:

  1. Recapture all the source material from the original sources as indicated in the tape list. For the necessary procedures, see Recapturing Media.
    NoteIf your assembled clip references media that has already been recaptured, the material does not have to be recaptured again. As well, it is recommended to consolidate clips before recapturing. See Optimizing the Recapture of Footage Referenced in AAF Files.

    After recapturing and relinking the sequence, exit the Recapture module to see the clip in the current clip library. A new reel appears in the library. This reel is named the same as the AAF file with the added suffix AAF Import. Within the reel, the clip assembled from the AAF is named the same as the sequence in Avid.

    NoteIf you load AAF files with the same name, the clips that are created from them are added to the same reel.

    You can load the reassembled clip into the timeline and proceed to tweak the effects added in the Avid application.
