Distort
setups can be saved and loaded as setup files, with spline and other
information preserved. You can also exchange Distort setups between
the Desktop and the Distort node in Batch.
To save a Distort setup:
Do one of the following:
In the Distort menu, click Save to open
the file browser.
From the Distort node in Batch, click
NodeSetup to display Distort’s Setup menu, then click Save Node
to open the file browser.
Select Setup as the type of file to save.
Type the name of the setup, and click
Save.
To load a Distort setup:
Do one of the following:
In the Distort menu, click Load to open
the file browser.
From the Distort node in Batch, click
NodeSetup to display Distort’s Setup menu, then click Load Node
to open the file browser.
From the Load Type box, select the type
of files to load.

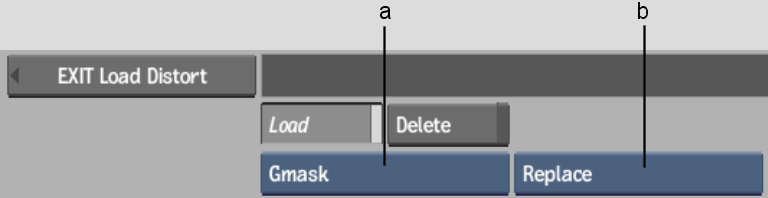

(a) Load
Type box (b) Load Mode box
From the Load Mode box, select whether
to want the setup to append to or replace any existing Distort splines
in your scene.
From the file browser, select the name
of the setup to load.
NoteIf the Distort setup
you are loading was created in a different resolution than the current
project, click Scale Setup to scale the setup's splines.
