Using the Patch Panel




Use the patch panel to “lock” video and audio signals between the source and record clips. Normally, when a source clip is used in an editing operation, the Primary video track in the source clip is applied to the Primary video track in the record clip; the first audio track in the source clip is applied to the first audio track in the record clip, and so on. You can change this default mapping in the patch panel.

The maximum number of audio tracks that you can patch simultaneously depends on your system configuration.

Each field in the patch panel shows the Source track and the Record track.

Show small imageShow large image

(a) Source output channel  (b) Record output channel  

Patch panel fields are colour coded according to the availability of tracks on the record clip.

Colour: Indicates:
Light grey The track does not exist.
Dark grey The track exists but is locked.
Blue The track is unlocked.

To display the patch panel:

  1. Select and enable Patch from the Menu Priority box.

    Show small imageShow large image

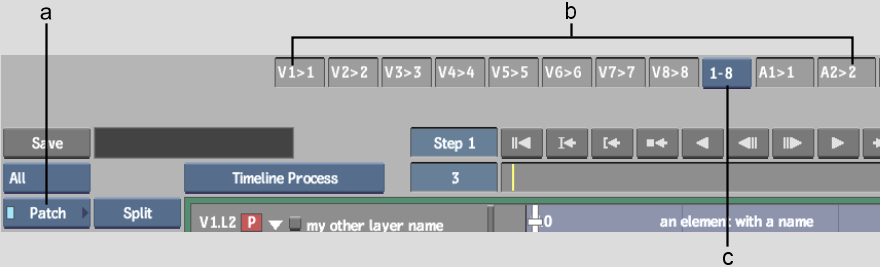

    (a) Menu Priority box  (b) Patch panel  (c) Audio Track Selection box  

To use the patch panel:

  1. Display the patch panel.
  2. Make sure that the appropriate record tracks exist and are unlocked. For example, if you want to reassign source track A4 to record track A8, make sure that the record clip has an A8 track, and it is unlocked.
  3. Use the Audio Track Selection box to switch between the following groups of audio tracks:
  4. Click the field that contains the track you want to change, and set the new path. Note that the corresponding field updates automatically.
    NoteAlways modify the destination and not the source. For example, if you want to reassign A3->A4, click in the box that has A4 as the record and then drag until A3 is the source.

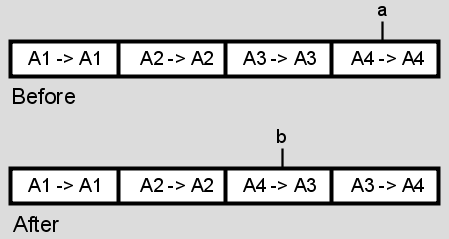

    The following figure illustrates patching source track A3 to record track A4.

    Show small imageShow large image

    (a) Enter the new track in this field  (b) Corresponding field updates  

  5. Insert or overwrite the source clip onto the record clip.

    When you perform the edit, the video and audio signals are routed using the assignments in the patch panel.

NotePatch panel settings are global and not based on individual clips. When you reassign tracks using the patch panel, the new settings apply to all edits until the patch panel is reset. You can reset to the default assignments by clicking the Reset button. Keep in mind that resetting the patch panel does not affect clips with track assignments that have are already modified.
