Accessing the LUT Editor in the Deliverables Menu




Access the LUT Editor in the Deliverables menu to import and create custom 1D LUTs that can be applied in real-time during the output of a clip.

When a Deliverable is applied to a clip, the LUT settings in the Deliverables menu override current 1D and 3D LUT preferences.

To access the LUT Editor in the Deliverables menu:

  1. In the Player, click the Deliverables tab.
  2. Create a new deliverable or use the current one. See Creating and Modifying Deliverables.

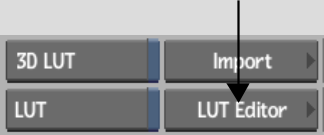

  3. Click the LUT Editor.

    Show small imageShow large image

    The LUT Editor appears, loaded with the current frame of the clip.

  4. Define a basic LUT type, or load a LUT Editor setup to begin customizing the LUT. See Defining a Basic LUT Type and Saving LUT Editor Setups.

    In the Deliverables menu, the 1D LUT is applied by default.

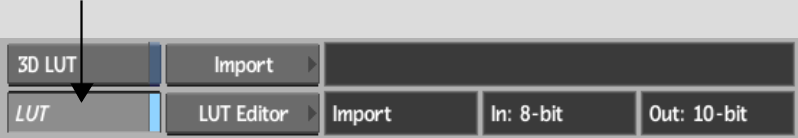

  5. Enable LUT to toggle 1D LUT display.

    Show small imageShow large image
