Resetting EQ Values




You can reset the EQ values to default for a single knob, a range of knobs, or an entire input strip.

To reset EQ values:

  1. On the EQ Desk, enable Reset.

    Show small imageShow large image

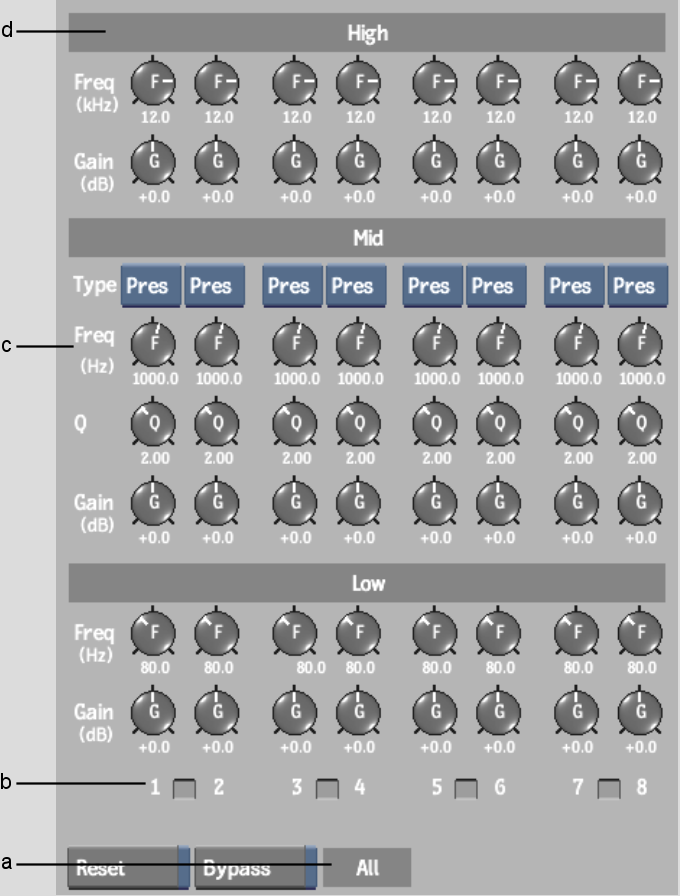

    (a) All label resets everything  (b) Track label resets the entire input strip  (c) Parameter label resets the entire row  (d) Group label resets all values within group  

  2. Reset the applicable EQ value by clicking it, as follows.
    To reset: Click:
    An individual knob. The knob.
    A row of EQ values. The Freq, Gain, Type, or Q type parameter label.
    All EQ values of a group. The High, Mid, or Low group label.
    All EQ values for a single input strip. The track label. If a channel is locked with another, both are reset.
    All EQ values. The All label.
TipInstead of using the Reset button, you can also Ctrl-double-click knobs and labels to reset values.
