Applying 3D LUTs to the Player




On the EditDesk, using the Player controls you can switch to 3D LUT display mode, and then select the 3D LUT you want to use to accurately display film clips.

To apply a 3D LUT to a clip in the Player:

  1. Click the Clip tab.

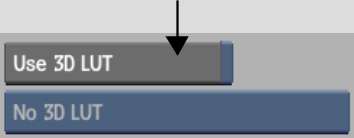

  2. Enable Use 3D LUT or press Alt+Shift+‘ (on the tilde key).

    Show small imageShow large image

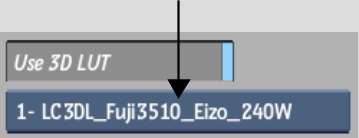

    The 3D LUT List box is enabled, indicating which 3D LUT is currently being applied to the Player.

  3. To change 3D LUTs, do one of the following:
    • Select the 3D LUT that you want to apply from the 3D LUT List box.

      Show small imageShow large image

    • Use hotkeys to switch between 3D LUTs defined in the 3D LUT list.
      Press: To apply:
      Alt+Shift+1 The first 3D LUT defined in the 3D LUT list.
      Alt+Shift+[2-9] The second through ninth 3D LUT defined in the 3D LUT list.
      Alt+Shift+0 The tenth 3D LUT defined in the 3D LUT list.
  4. To turn off 3D LUT processing, disable 3D LUT or press Alt+Shift+‘ (on the tilde key).
