Keycode can be displayed on clip proxies in the Source Area and in the clip library.

Timecode and keycode are displayed in clips as follows.

To display timecode and keycode on proxies in the clip library:

1. In the clip library, ensure that View Mode is set to Proxies.

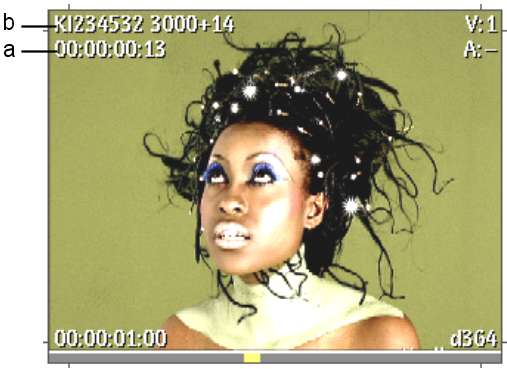

   (a) View Mode box  (b) Information box  

2. From the Information box, select any option except No Display.

To display timecode and keycode on proxies on the EditDesk:

1. On the EditDesk, from the Menu Priority box, select Source Area and then enable it.




2. From the Clip Information box, select an option that includes timecode/keycode.




   Select:	To display:
   KC/F + Res	Keycode, frame number, clip duration, and resolution.
   KC/TC +Res	Keycode, timecode, clip duration, and resolution.
   KC/Frame	Keycode, clip duration, and frame number.
   KC/TC	Keycode, timecode, and clip duration.

   NoteYou can use the Ctrl+I hotkey to cycle through display options, including the keycode options.
