You can save a key setup that includes the settings in all nodes used to create the key. You can save part of a setup and reload it, or load and save nodes separately.

For Modular Keyer setups that contain RGB Blur and Edge nodes, width and height values are scaled according to the clip resolution of the current session.

To save the key setup:

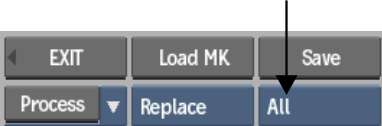

1. From the Save option box in the Modular Keyer menu, select All or Selected.




   NoteProxies are not saved when using the Selected option.
2. Click Save. See Saving Setups and Preferences.
   TipYou can go directly to the Load Setup browser by holding Alt when you drag a node to the schematic.
