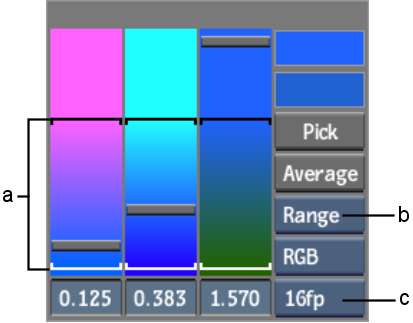

The colour picker allows
you to pick colours from a 16-bit floating point media. And to accomodate
the wide range of possible values in 16-bit floating point, the
colour picker displays additional information.
Whenever you set the
Bit Depth box to 16fp:
- Each colour slider contains a pair of
brackets. The brackets define the 0-1 colour range. Only values
inside this 0-1 range are valid once converted to a 8-, 10-, and
12-bit colours.
- You can set values below 0 or over 1.
Such values are only possible in the 16-bit floating point colourspace
and are not valid in 8-, 10-, and 12-bit colours.
- The numeric fields can use negative values.
