Applying 1D LUTs to the Monitor




Gamma and 1D LUTs configured in the Preferences can be applied to the monitor. See LUT Preferences. They can also be applied from the View menu.

3D LUT display mode is disabled when 1D LUT display mode is activated.

To apply a 1D LUT to the monitor:

  1. Enable Use 1D LUT to enable 1D LUT display mode. You can also press Ctrl+Shift+‘ (on the tilde key).

    The 1D LUT displayed in the 1D LUT List box is applied to the display.

  2. To change 1D LUTs, do one of the following:

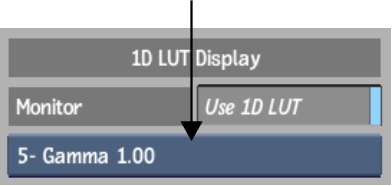

    • In the View menu, select the 1D LUT from the list in the Monitor LUT List box.

    Show small imageShow large image

    • Use hotkeys to switch between 1D LUTs defined in the 1D LUT list.
    Press: To apply:
    Ctrl+Shift+1 The first 1D LUT defined in the 1D LUT list.
    Ctrl+Shift+[2-9] The second through ninth 1D LUT defined in the 3D LUT list.
    Ctrl+Shift+0 The tenth 3D LUT defined in the 1D LUT list.
  3. To toggle the current 1D LUT on and off, press its associated hotkey (Ctrl+Shift+[1-0]).
  4. To disable 1D LUT display mode, press Ctrl+Shift+‘ (on the tilde key).
