Applying 3D LUTs During Real-Time Operations




You can import a 3D LUT that can be applied in real-time during the output of a clip.

When a Deliverable is applied to a clip, the LUT settings in the Deliverables menu override current 1D and 3D LUT preferences.

To import a 3D LUT in the Deliverables menu:

  1. In the Player, click the Deliverables tab.
  2. Create a new deliverable or use the current one. See Creating and Modifying Deliverables.

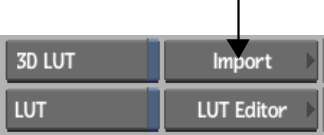

  3. Click Import.

    Show small imageShow large image

    The File list appears.

  4. Select a 3D LUT from the Files list or navigate to the file you want to use.

    In the Deliverables menu, the 3D LUT is applied by default.

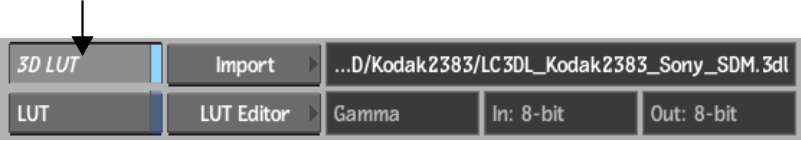

  5. Enable 3D LUT to toggle 3D LUT display.

    Show small imageShow large image
