When you copy a node, all node information is copied as well. Copy nodes when you want to apply the same settings to another clip.

You can copy individual nodes, branches, as well as entire trees depending on the option you choose from the Selection Mode box. In the following procedure, an individual node is copied.

To copy nodes:

1. Select an option from the Selection Mode box for the nodes that you want to copy.




2. In the schematic, make your node selection.

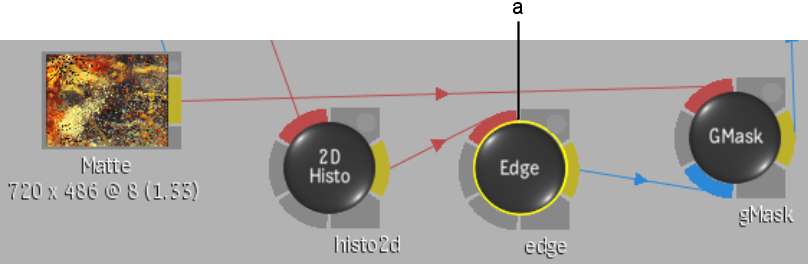

   In the following example, the Edge node in the Modular Keyer flow graph schematic is selected.




   (a)  Selected node

   NoteIn the Modular Keyer schematic, you cannot copy clip nodes or the Result node.
3. Click Copy.




   A copy of the Edge node appears in the schematic.




   (a)  Copied node
