mudbox::AttributeMirrorConfigurationWidget Class Reference

#include <widgets.h>

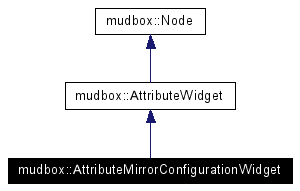

Inheritance diagram for mudbox::AttributeMirrorConfigurationWidget:

Detailed Description

An attribute widget for setting the brush mirror mode.


Public Slots
void	OnChange (int)
	This method is called when the user selects a new item in the combobox.
void	ShowMirrorAxis (int)
	This method is called when the user is scrolling through the menu choices, to display a preview of the mirroring axis.
Public Member Functions
	AttributeMirrorConfigurationWidget (QWidget pParent, int iWidth, amirrorcfg pAttribute)
	Constructor.
Protected Member Functions
void	MoveValue (int iStart, int iEnd)
	Changes the position of the combobox.
void	Update (void)
	Updates the widget values from the attribute.
Protected Attributes
bool	m_bLock
	Prevents unnecessary window updates.
MirrorComboBox	m_cCombo
	The combo box to display mirror modes.

mudbox::AttributeMirrorConfigurationWidget::AttributeMirrorConfigurationWidget	(	QWidget *	pParent,
		int	iWidth,
		amirrorcfg *	pAttribute
	)

Constructor.

void mudbox::AttributeMirrorConfigurationWidget::MoveValue	(	int	iStart,
		int	iEnd
	)	`[protected, virtual]`

Changes the position of the combobox.

void mudbox::AttributeMirrorConfigurationWidget::Update ( void ) [protected, virtual]

Updates the widget values from the attribute.

void mudbox::AttributeMirrorConfigurationWidget::OnChange ( int ) [slot]

This method is called when the user selects a new item in the combobox.

void mudbox::AttributeMirrorConfigurationWidget::ShowMirrorAxis ( int ) [slot]

This method is called when the user is scrolling through the menu choices, to display a preview of the mirroring axis.

Prevents unnecessary window updates.

The combo box to display mirror modes.
