mudbox::AttributeCheckableFloat Class Reference

#include <math.h>

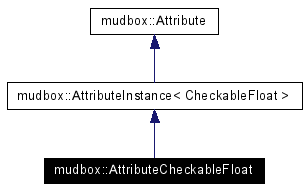

Inheritance diagram for mudbox::AttributeCheckableFloat:


Public Member Functions
	AttributeCheckableFloat (Node *pOwner=0, const QString &sID="", const QString &sValueName="")
void	SetValueName (const QString &sValueName)
QString	ValueName (void) const
Attribute::AttributeType	Type (void) const
AttributeWidget *	CreateEditorWidget (QWidget *pParent, int iWidth)
QString	AsString (void) const
void	SetFromString (const QString &s)
Protected Attributes
QString	m_sValueName

Constructor & Destructor Documentation

mudbox::AttributeCheckableFloat::AttributeCheckableFloat	(	Node *	pOwner = `0`,
		const QString &	sID = `""`,
		const QString &	sValueName = `""`
	)	`[inline]`

01288                                                                                                          : AttributeInstance<CheckableFloat>( pOwner, sID )
01289         { m_iSize = sizeof(CheckableFloat); m_sValueName = sValueName; };

Member Function Documentation

void mudbox::AttributeCheckableFloat::SetValueName ( const QString & sValueName ) [inline]

01290 { m_sValueName = sValueName; };

QString mudbox::AttributeCheckableFloat::ValueName ( void ) const [inline]

01291 { return m_sValueName; };

Attribute::AttributeType mudbox::AttributeCheckableFloat::Type ( void ) const [inline, virtual]

Reimplemented from mudbox::AttributeInstance< CheckableFloat >.

01293 { return typeUnknown; };

AttributeWidget* mudbox::AttributeCheckableFloat::CreateEditorWidget	(	QWidget *	pParent,
		int	iWidth
	)	`[inline, virtual]`

Reimplemented from mudbox::AttributeInstance< CheckableFloat >.

01294 { return CreateNewCheckableFloatWidget( pParent, iWidth, (AttributeCheckableFloat *)this ); };

QString mudbox::AttributeCheckableFloat::AsString ( void ) const [inline, virtual]

Reimplemented from mudbox::AttributeInstance< CheckableFloat >.

01295 { return QString("%1 %2").arg(m_cValue.State() ? "true" : "false").arg(m_cValue.Value()); };

void mudbox::AttributeCheckableFloat::SetFromString ( const QString & s ) [inline, virtual]

Reimplemented from mudbox::AttributeInstance< CheckableFloat >.

01297     {
01298         m_cValue.SetState( s.section( ' ', 0, 0 ) == "true" ? true : false );
01299         m_cValue.SetValue( s.section( ' ', 1, 1 ).toFloat() );
01300     };

Member Data Documentation

QString mudbox::AttributeCheckableFloat::m_sValueName [protected]
