Create custom bins and populate them with your most commonly used nodes to optimize your workflow. As well, change the order of the tabs along the top of the bin and rename them to reflect the contents of a bin.

You can customize any bin in the Modular Keyer bin except the All Nodes bin and its tab.

To create a tab:

1. Click the plus sign tab.




2. Name the tab in the keyboard that appears.
   NoteYou can create as many tabs as fit along the top of the bin.

To copy a node to another bin:

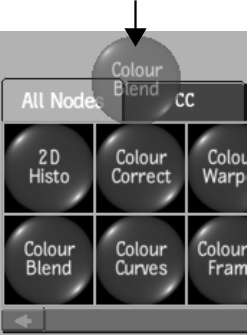

1. Drag the node on top of the destination tab.




   NoteYou must create a tab before copying a node to it. Dragging a node to the plus sign tab will not copy the node.
2. Release the cursor when it changes to a green crosshair.
3. Click the destination tab when the standard yellow cursor reappears.

   The copied node appears in the bin. Nodes are added to the end of a bin in the order copied (following the same alphabetical node order of the rows, from top to bottom of each row).

   NoteNodes cannot be duplicated within the same bin.

To move a node to another bin:

1. Press Ctrl+Alt and drag the node on top of the destination tab.




2. Release the cursor when it changes to a green crosshair.
3. Click the destination tab when the standard yellow cursor reappears.

   The node is moved from its original location to the destination bin. Nodes are placed at the end of a bin in the order moved (following the same alphabetical node order of the rows, from top to bottom of each row).

   NoteNodes cannot be duplicated within the same bin.

To move a node to the schematic:

1. Press Ctrl+Alt and drag a node to the schematic.

   The node is moved from the bin and placed in the schematic.

To reorder a node within a bin:

1. Press Ctrl+Alt and drag the node to a new location. You can move nodes from one row to another as well as reorganize nodes within a row.

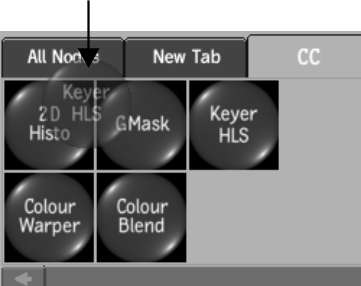

   In the following example, the Keyer HLS node is dragged on top of the 2D Histo node.




2. Release the cursor when it changes to a green crosshair at the location where you want the node moved.

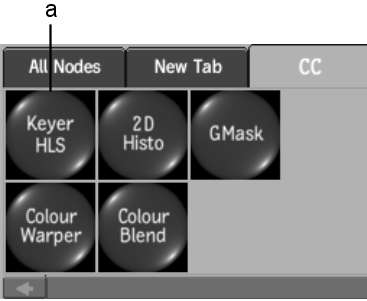

   If you dragged the node on top of an existing node, the existing node shifts to the right and the moved node is inserted in its place. In the following example, the Keyer HLS node is inserted in the place of the 2D Histo node, and the 2D Histo and GMask nodes shift to the right.




   (a) Reordered node  

To reset a bin to its default node layout:

1. With the applicable bin active, click Sort.

   The nodes in the bin are reset to their alphabetical layout.

To delete a bin:

1. Press Ctrl+Alt and drag the tab to the bottom of the screen.
2. Release the cursor when it changes to a delete cursor.
   WarningThere is no undo capability when deleting a bin.

   The entire contents of the bin, including the tab, are deleted.

To delete a node from a bin:

1. Press Ctrl+Alt and drag the node to the bottom of the screen.
2. Release the cursor when it changes to a delete cursor.
   WarningThere is no undo capability when deleting a node.

To rename a tab:

1. Click the Rename Tab button.
2. Enter a new tab name in the keyboard that appears.

To reorder a tab:

1. Press Ctrl+Alt and slide the tab to its new location.
2. Release the cursor when it changes to a green crosshair at the new location for the tab.

   If you dragged the tab on top of an existing tab, the existing tab shifts to the right and the moved tab is inserted in its place.

To save a bin layout:

1. Click Save Bin Layout.
2. Name the layout.

   The layout of the entire Modular Keyer bin is saved, including all new and customized bins. You cannot save only select bins. Layouts are saved per user.

To load a bin layout:

1. Click Load Bin Layout.
2. Select the layout you want to load.

   Each customized bin, including all new bins, is loaded into the Modular Keyer bin.

   NoteIf you load a bin layout containing unsupported nodes, the unsupported nodes do not appear.
