You can select one track at a time, multiple tracks, or all tracks. Selected tracks are yellow and their associated Selector icon appears recessed.

To select a track:

1. Do one of the following:
   • If the track has only one layer, click the Selector icon.
   • If the track has multiple layers, click the Collapse arrow and then click the Selector icon, or Ctrl-click each layer's Selector icon.

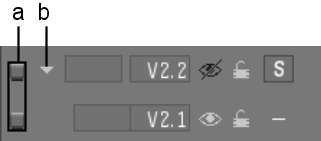

   (a) Selector icon (b) Collapse arrow 

To select multiple tracks:

1. Do one of the following:
   • To select a range of tracks, Shift-click the Selector icon of the first and last tracks.
   • To select individual tracks, Ctrl-click the Selector icon of each layer.




To select all tracks:

1. Click the All Tracks Selector icon or press / on the keypad.




To deselect tracks:

1. Do any of the following:
   • To deselect all tracks, press * on the numeric keypad or click the All Tracks Selector icon.
   • To deselect individual tracks, click the track’s Selector icon.

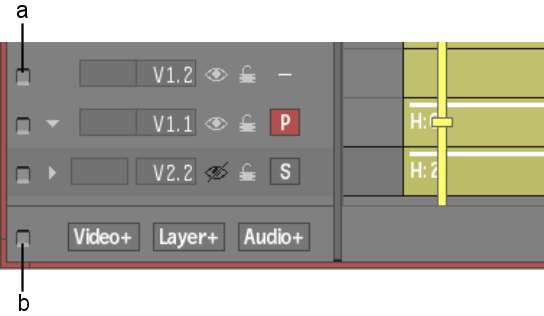

   (a) Selector icon for V1.2 (b) All Tracks Selector icon
