Loading LUT Editor Setups




Loading a LUT Editor setup gives you access to the menu properties and advanced editing curves used to create the LUT.

You can load setups on image import from the EditDesk and from the LUT Editor associated with any node in Batch.

To load a LUT Editor setup while importing images from the EditDesk:

  1. Access the LUT Editor.

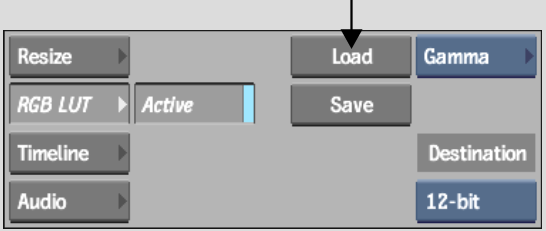

  2. Click Load.

    Show small imageShow large image

    The file browser appears.

  3. Select the LUT Editor setup that you want to load.

    You are returned to the LUT Editor and the setup is loaded.

To load a setup in the LUT Editor in Batch:

  1. Access the LUT Editor.

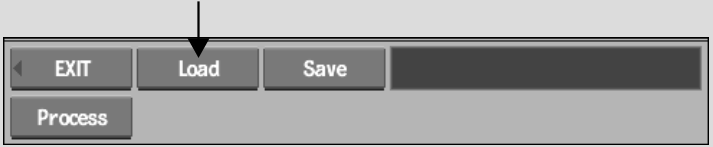

  2. Click Load.

    Show small imageShow large image

    The file browser appears.

  3. Locate and select the LUT Editor setup that you want to load.

    You are returned to the LUT Editor and the setup file is loaded.
