Home: Smoke
Axis Editor
Creating Axis Soft Effects
Hiding Nodes
Working with Axis Soft Effect Layers
Working with global and axis transitions is
different in the Axis Editor than in Action. Only one layer
is available with the Axis soft effect.

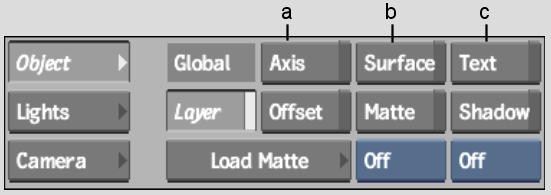

To
work with a specific axis:
- Click
Object.
- Select
the axis you want to modify, or click Surface, Text, or Axis.
- Modify
the attributes of the selected axis. You can modify attributes using
the respective fields or select an option from the Edit Mode box
and work directly in the image window.
To
work with the layer:
- Click
Object.
- Click
Layer.
- Click
the border of the layer to select it.
- Modify
the layer attributes, You can modify attributes using the respective
fields or select an option from the Edit Mode box and work directly
in the image window.
