Viewing Safe Action and Safe Title Overlays




When you view a clip using the Player, the entire frame appears from edge-to-edge. Most video monitors, such as home television sets, crop the edges of the image slightly. Overlays are used to help you visualize how much of the video in the Player may be lost on other monitors.

Use the Overlays button to turn on or off the display of overlays. Use the Overlay controls to determine which overlays are displayed.

To view overlays:

  1. Click the Player Options tab.
  2. Enable Overlays.

    Show small imageShow large image

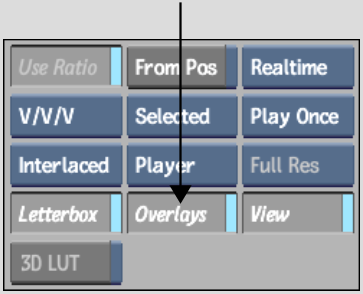

  3. If multiple display options are enabled, select Overlays from the Preview Setup box.

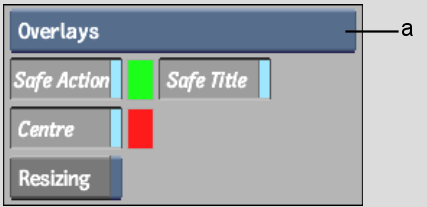

    The Overlay controls appear.

    Show small imageShow large image

    (a) Preview Setup box  

  4. Select the overlay(s) you want to view.
    Enable: To:
    Centre Put a crosshair in the centre of the display.
    Safe Title Indicate the maximum image area where it is safe to put title information without the risk of it being cropped.
    Safe Action Indicate the maximum image area where it is safe to include action in the scene without the risk of it being cropped.
    Resizing Indicate the maximum image area where it is safe to include action in the scene without it being cropped by the Pan and Tilt settings.
    NoteClick the colour pot to change the display colour of the Safe Action, Centre, and Resizing overlays. See Colour Picker.
