Applying a Letterbox Format to a Clip

Setting Player Display Options

Navigating Clips Using the Timesmear



Getting Started > Player Essentials > Setting Player Display Options >

Setting the View Options to Compare Video Tracks

Use the View options to display images from two video tracks simultaneously. You can choose to view the two tracks in a screen that is split horizontally, vertically, or at a custom set angle. Alternatively, the two tracks can be viewed as a transparency blend. The two tracks viewed are the Primary and Secondary tracks.

To view the two video tracks in the Player:

1. Click the Player Options tab.

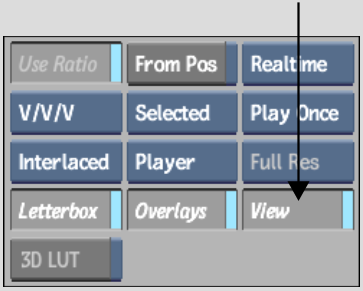

2. Enable View.




3. If multiple display options are enabled, select View from the Preview Setup box.

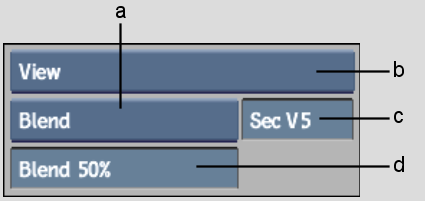

   The View controls appear.




   (a) Preview Setup box  (b) View Style box  (c) Secondary Video Track field  (d) View Percentage/Position field  

4. Enter the Secondary video track you want to display in the Secondary Video Track field.
5. Select how you want to view the two tracks using the View Style box.
6. Optional: Modify the appearance of the split screen by doing one of the following:
   • If you selected Horizontal or Vertical Split, set the position of the split.
   • If you selected Angle Split, set the position and angle of the split.
   • If you selected Blend, set the percentage of the secondary track that is displayed. For example, if you specify 60, the image is composed of a blend of 40% of the Primary track and 60% of the Secondary track.
   NoteThe Secondary video track appears black if it is an unrendered effect, or if both the Primary and Secondary video tracks contain unrendered dissolves.
