Accessing the A/V Tools

The A/V tools are grouped into different menus. To access these menus, use the A/V Tools box in the EditDesk menu.

The Undo and Redo buttons are also available while using A/V tools, so you can undo/redo events without having to exit the menu.

To access an A/V tools menu:

1. Make sure the current option in the Menu Priority box is disabled; alternatively, enable Effects in the Menu Priority box.

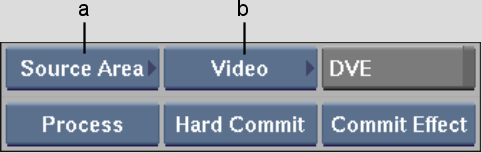

   (a) Menu Priority box  (b) A/V Tools box  

   NoteTo access the A/V Tools box when the Player is displayed, Effects must be enabled in the Menu Priority box.
2. Select and enable an option from the A/V Tools box.

   The tools grouped under the selected A/V Tools box option appear.




   A blue LED light on the A/V Tools box indicates that the selected option is locked on until either a new tools option is selected or the current tools option is deselected.

3. To activate a tool, click once on the selected tool.

   Parameters that correspond to the selected tool appear.
