Moving Nodes

You can move a node, a branch, a group, or an entire process tree. Typically, you move a node by dragging it in the schematic. You can move several nodes at a time.

To move nodes:

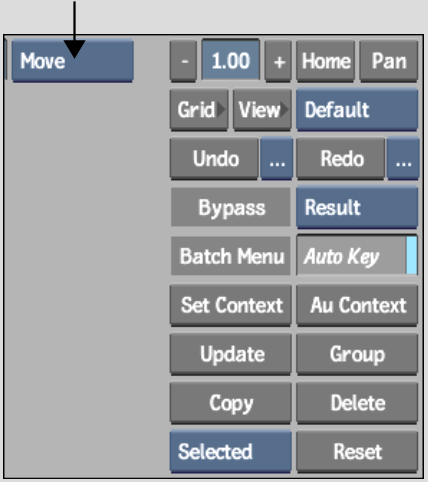

1. In the Edit Mode box, select Move.




   In the schematic, the cursor changes to a blue crosshair.

2. In the Selection Mode box, select the nodes and clips you want to move.
3. Press Alt and click a node to move all selected nodes.
