Viewing Head, Tail, and Offset Information

Editing > Trimming >

Head, tail, and offset information is part of the clip information provided in Timeline, Trim, and Head/Tail views.

Show small image Show large image

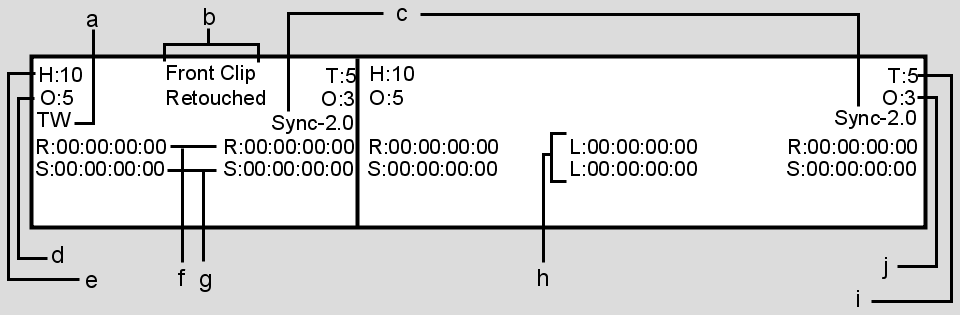

(a) Soft effect (b) Clip/element name (c) Edit sync offset (d) Head offset (e) Head frame count (f) Record timecode (head and tail) (g) Source timecode (head and tail) (h) Record and Source clip duration (i) Tail frame count (j) Tail offset

TipTo display clip information in any view, Alt-click an element. In Timeline and Trim view, you can also expand the layer on the timeline.

Head and tail frames are the soft properties of a clip. These are the frames that are part of the original clip, but not used in the current edit, or are used for blending transitions such as dissolves and wipes.

Offsets are reference numbers that indicate the change, in frames, that takes place when you trim. Offsets are displayed at both the head and tail of each clip. Although Head and Tail numbers change correspondingly, offsets are easier to use for calculation and reference because they start at zero, and you can reset them to zero at any time.

Head offsets are created as follows.

Action	Result Offset
Trimming frames out of a clip's head	Negative
Trimming frames into a clip's head	Positive

Tail offsets are created as follows.

Action	Result Offset
Trimming frames out of a clip's tail	Positive
Trimming frames into a clip's tail	Negative

For example, if you trim 10 frames out of a clip's head, the offset at the head of that clip is -10. If you trim 10 frames into a clip's head, the offset at the head of the clip is 10.

To reset offsets:

Select one of the following from the Offsets box:
- To clear only the offsets for the currently selected elements, select Clear Sel Offsets.
- To reset the Offset indicators to zero for all elements, select Clear Offsets.

To view additional timeline information:

In the Timeline area of the Preferences menu, select an option from the Handles box.

Select:	To display:
Handles	Handles values at the Head and Tail for timeline elements.
Offsets	Offset value above the Handles value.
No information	Only soft effects tags on timeline elements.
