Applying a Soft Resize

Resize

Resize Settings



Pre-processing > Resize >

Changing Views in Resizeand in Batch

When accessed from the A/V Tools or from soft effects, Resize includes a crop box that you use to define the region of the source clip from which the resize sample is taken.

You view the crop box with Front view selected, and the resized result with Result view selected. The most efficient way to work is to set up two viewports for a split view of the front and result views.

To monitor a Split view in Resize:

1. Load a clip into Resize or display the soft Resize settings if you are working on the timeline.

   With Split view enabled, the viewport on the left displays the front clip and the viewport on the right displays the result clip.

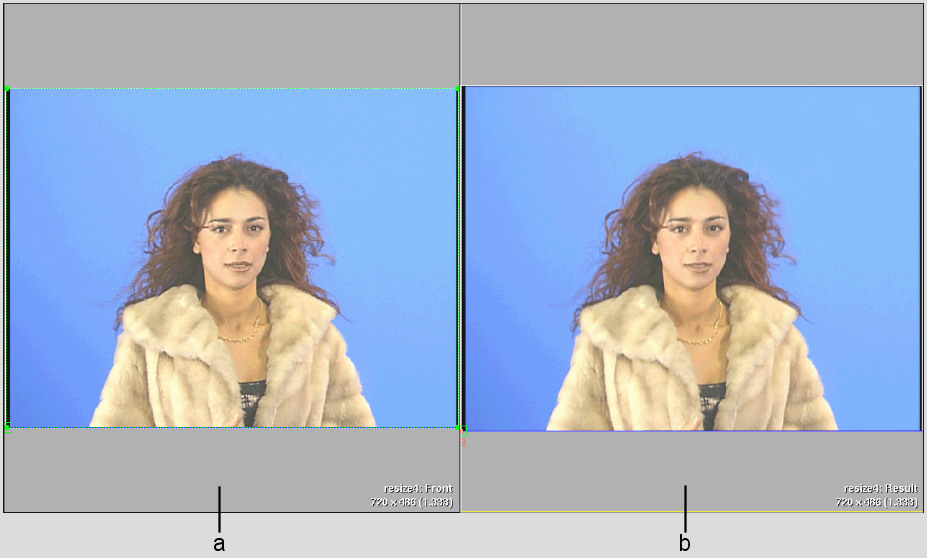

   (a) Front clip and crop box  (b) Result clip  

2. To change the view of the active viewport (the active viewport is indicated by a yellow border), select an option from the View box.




   Select:	To view:
   Front (or press F1)	The front clip and crop box.
   Result (or press F4)	The result clip.
   Channels (or press F5)	The Channel Editor.
   Tracks	The Channel Editor (set to Track view mode). Press F5 to cycle between the Channel Editor view options.
   Info	The Channel Editor (set to the Channel Information view mode). Press F5 to cycle between the Channel Editor view options.
