Blending Front and Back Clips

After you remove colour spill, you can use the Blend parameters to gesturally modify the luminance at the edge of the key so that it blends with the luminance in the background clip. For example, when the front clip is darker than the back clip, you can use the Blend parameters to lighten the edge of the key. You can also use the Blend controls in the Keyer or Colour menu. For instructions on using Blend controls, see Blending the Front and Back Clip.

When you blend front and back clips, you can add a cast to the edge of the key and further integrate the clips.

To blend the front and back clips:

1. In the Master Keyer menu, select Blend from the Sampling box (or press B).

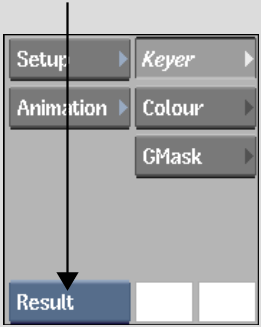

2. Set the view to Result view.

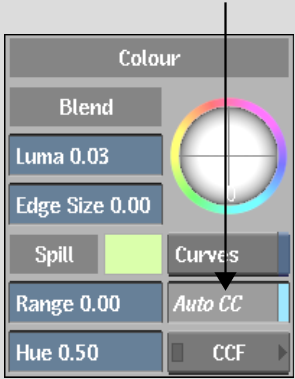

3. Enable Auto CC to apply the Spill settings to the front clip.




4. Blend the front and back clip. Click anywhere in the image window, and then modify the parameters that appear by dragging the sliders—you do not need to click a specific area.

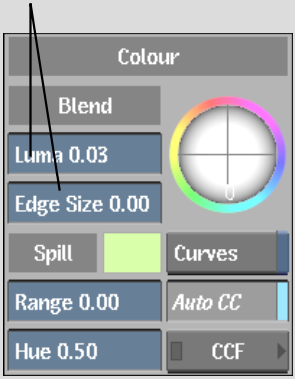

   Drag:	To:
   Luma	Darken or lighten the edge of the key. Luma only affects the luma of the edge.
   Edge Size	Set the range for the blend. Drag right to soften the edge and blend further into the key. Drag left to harden, or create a thinner, edge. Edge Size affects both the Luma field and the Edge Balance trackball.

   TipTo drag faster, apply more pressure with the pen, or right-click the mouse while you drag.

   The red indicator shows the original value and the yellow indicator shows the current value. The values also appear in the Blend fields.




5. To modify both parameters, move the mouse between them to highlight a parameter, or drag the pen vertically. When you highlight the parameter you want to adjust, drag the slider.
   TipIf you do not like the result, you can click Undo to reset parameters directly after you complete an operation. There is only one level of undo in the Keyer menu.
6. When you are finished modifying the displayed parameters, click another area of the image without highlighting a parameter to hide them. Alternatively, you can press any key, such as spacebar or Esc.

   The parameters are no longer displayed.

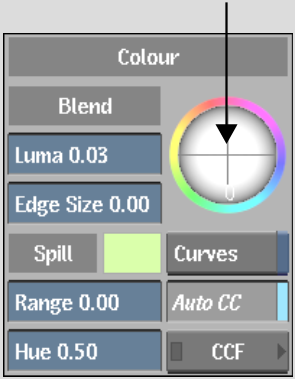

7. To add a cast to the edge of the key and improve the overall look by matching the edge with a colour cast in the back clip, drag the Edge Balance trackball toward the colour you want to add. The trackball only affects the chroma of the edge.
