Blurring Grainy Clips

Graininess can make it difficult to pull a clean and effective key. In the Setup menu, you can use the Degrain and KeyIn Filter controls to remove film grain:

• Use Degrain to modify the size of the grain and de-sharpen the edges of the key. The front clip is not affected when you apply Degrain to the key-in clip.
  NoteThe same Degrain tools are also available in the Master Keyer. Use the Degrain tools in the Keyer's Setup menu to affect all the Keyer's ranges, or use them in the Master Keyer to affect only the Master Keyer.
• Use the KeyIn Filter to apply a blur filter to the key-in clip and create a soft matte—this makes it easy to achieve a good tolerance range. The front clip is not affected by this blur filter.

To access the Setup menu:

1. In the Keyer, click Setup.

   The Setup menu appears.

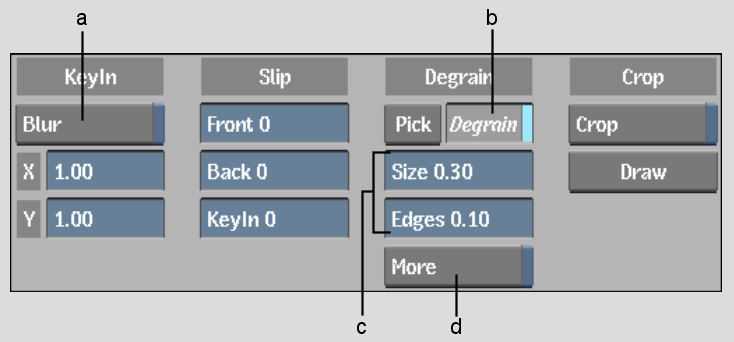

   (a) Blur filter  (b) Degrain button  (c) Degrain parameters  (d) More button  

To remove grain using Degrain:

1. In the Setup menu, click Pick.




2. Sample a grainy area of the image. To sample a single pixel, click the image. To sample an area of the image, Ctrl-drag a selection box.

   The Degrain button is enabled and the algorithm is applied to the image—grain is removed from the image.

   NoteThe Degrain button is either enabled or disabled for the entire clip—you cannot turn it on and off for different frames in the clip.
3. Drag in the Degrain fields to modify the grain size and restore edge sharpness.

   Drag:	To:
   Size	Estimate the size of the grain in the image.
   Edges	De-sharpen the edge of the image. By default, Degrain sharpens the edges. Use the Edges field to restore the natural look of the edges in the image.

4. If you are not satisfied with the result, you can start over with a new sample, and then adjust the Degrain fields. To resample an area of the image, enable Pick and then Ctrl+Alt-drag the image.

   The sample is outlined in green, indicating that you are resampling the image.

5. If resampling the image and adjusting the Degrain fields does not sufficiently remove grain, enable More to increase the overall affect of Degrain.
   NoteThe More button is either enabled or disabled for the entire clip—you cannot turn it on and off for different frames in the clip. When you enable More, processing speed slows down.

To apply a KeyIn filter to a grainy key-in clip:

1. In the Setup menu, enable Blur.




   (a) Blur button  (b) X and Y Blur fields  

   A default box blur with a radius of 1 pixel is applied to the key-in clip.

2. If necessary, change the horizontal and vertical blur radius values in the X and Y fields.

   These values specify the width and height of the Blur filter applied to the key-in clip.

3. From the Filter box, select the type of blur filter you want to apply.




   (a) Filter box  

   Select:	To:
   Gaussian Filter	Produce a subtle effect using subpixel resolution. Gaussian blurs usually produce a smooth blur.
   Box Filter	Produce a blur that requires less processing.
