Setting the View Mode




Use the View Mode buttons to view different versions of the image as you work on your grade.

To set the view mode:

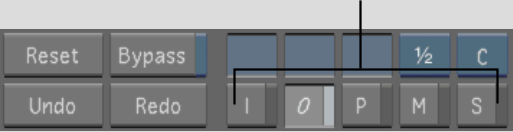

  1. Click one of the View Mode buttons.

    Show small imageShow large image

    Click: Or press: To view:
    I I The image with colour corrections made in the Grading and Curves menus only.
    NoteYou cannot select this mode if no corrections have been made in the Secondaries menu.
    O O The output image, which contains the result of all corrections applied. This is the default viewing mode.
    P P The printed, or rendered image. See Rendering. If the frame has not been rendered, a red X appears in the image window.
    NoteIf you rendered a shot and still see a red X in the image window, press Shift+P to force Lustre to re-detect all rendered files.
    M F11 The matte on a secondary correction. Press F11 to toggle between Secondary (Overlay) and Matte (Greyscale) view modes for the matte. See Creating a Secondary by Keying a Range of Colours.
    S L The stored reference image. See Viewing Reference Images.

    The image changes to the selected view mode.
