Customizing the View

There are options for customizing the view on both the Navigation panel and the Function panel.

When working with secondaries, users can use the Function panel to view them in Saturated Mask view or Matte view. Saturated Mask view displays the range of colours you define through a greyscale image. The unselected colours remain grey. Matte view displays a black and white template indicating which parts of the image are transparent (black), and which are opaque and selected (white).

To access view options available on the Navigation panel:

1. Press the top MORE button on the Navigation panel.




   The Panel, Storyboard, Label, Thumbs, and GUI options appear in the digital display at the top of the panel. The location of each option in the digital display reflects their button position on the panel.

2. Select one of the following options.

   Press:	To toggle the:
   CURVES	Panel sensitivity.
   KEY	Storyboard on or off.
   GEOM	Shot name on or off the image.
   P&S	Storyboard thumbnails on or off.
   MISC	Full-screen Player on or off.

To access view options available on the Function panel:

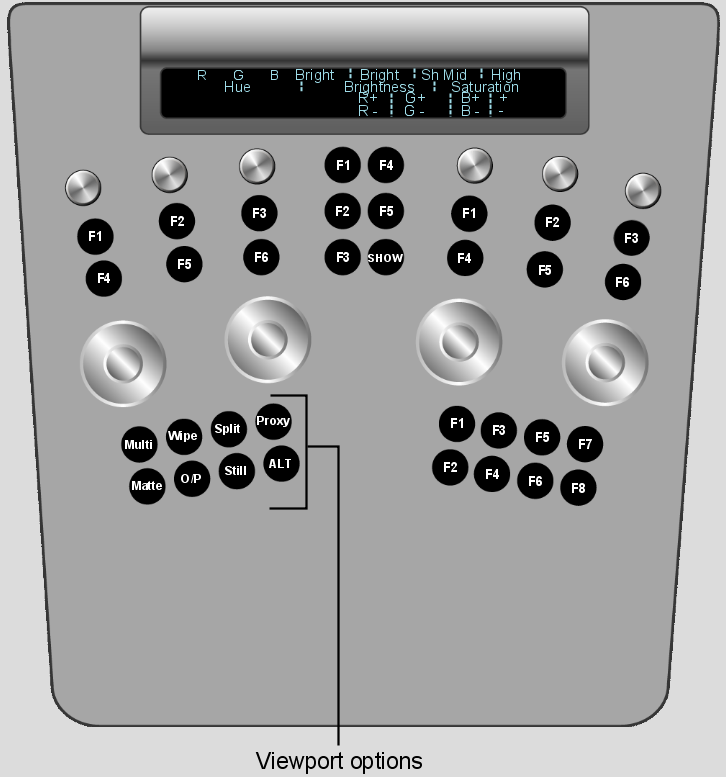

1. Use the viewport options to change the view as you work on your grades. For example, press PROXY to view a proxy version of your shot in the Player.




   Viewport option	Description
   MULTI	Toggles multi-shot display on and off in the Player. You can view up to 16 shots. In order for Multi to function, you must enable split-view first by pressing the Split button on the panel, or F5 on the keyboard.
   WIPE	Toggles between horizontal and vertical split view in the Player. In order for Wipe to function, you must enable split-view first by pressing the Split button on the panel, or F5 on the keyboard.
   SPLIT	Enables split-view in the Player, and the Multi and Wipe buttons.
   PROXY	Toggles between the full-resolution and half-resolution (proxy) version of your shot in the Player. If you have not rendered a proxy, an X appears in the Player.
   MATTE	Toggles between secondary grading view and result view.
   O/P	Toggles between a rendered version of your shot (P) and the pre-rendered version with grading applied (O). If you have not rendered the shot, an X appears in the Player when in P mode. Press the ALT and O/P buttons simultaneously to toggle to I mode (this displays the image with colour corrections made in the Grading and Curves menus only).
   STILL	Displays the stored reference image. Press the ALT and Still buttons simultaneously to store the current frame in the reference buffer.

   NoteYou can also access the SHOW button in the Function panel. This button shows or hides the geometry wireframe for the current secondary layer.
   NoteThere is no functionality assigned to the Function panel's ALT button for this release.

To change fonts in the digital display:

1. On the keyboard, press Shift+F until you obtain the desired font.
   NoteThe change is only maintained for the current session.

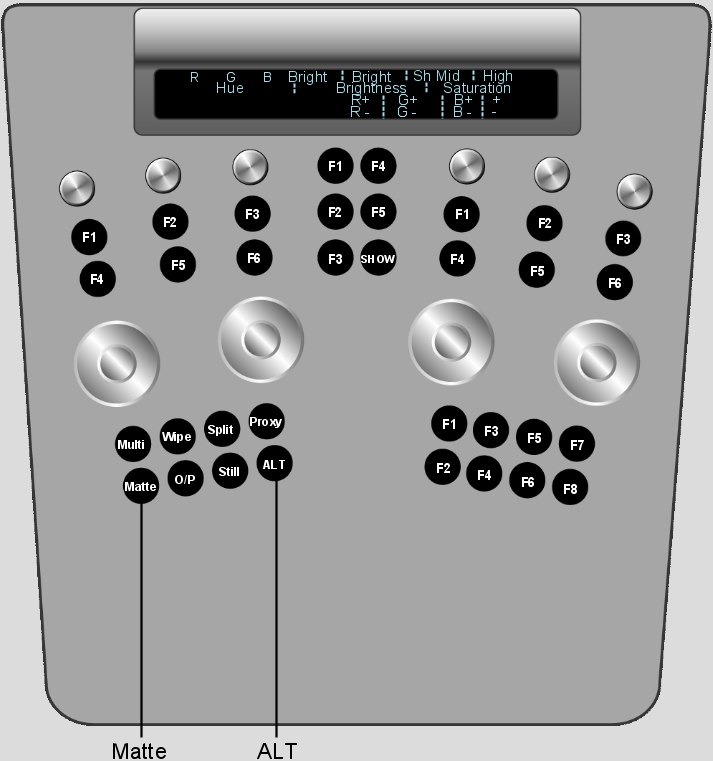

To toggle between “O” view and Matte view:

1. Press the MATTE button on the Function panel.




2. Hold down the ALT button on the Function panel while pressing MATTE again to switch between Saturated Mask view and black and white Matte view.
   TipYou can go directly to Saturated Mask view mode from another mode, e.g. Output, by holding down the ALT button and pressing Matte.
