Adjusting Printer Lights




You can adjust printer lights on the Navigation panel. Printer light values are displayed in the Colour Grading panel's digital display.

NoteYou can also adjust printer lights on the Function panel when the Grade menu is enabled. See Grading in Logarithmic Mode Using the Function Panel.

To adjust printer lights:

  1. On the Navigation panel, double-press the ALT button.

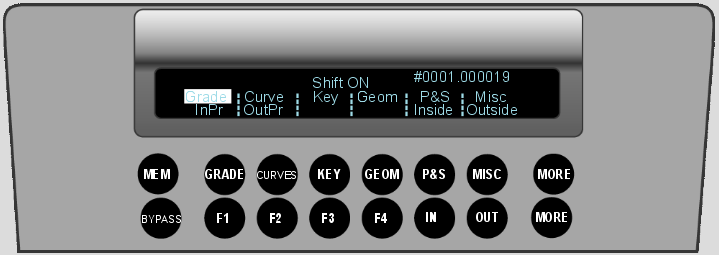

    The words “Shift ON” appear in the digital display.

    Show small imageShow large image

  2. Use the following buttons on the keypad to make printer light adjustments to the image.
    Press: To:
    7 Increase red brightness by one step.
    4 Decrease red brightness by one step.
    8 Increase green brightness by one step.
    5 Decrease green brightness by one step.
    9 Increase blue brightness by one step.
    6 Decrease blue brightness by one step.
    1 Increase cyan brightness by one step.
    - (minus sign) Decrease cyan brightness by one step.
    2 Increase magenta brightness by one step.
    0 Decrease magenta brightness by one step.
    3 Increase yellow brightness by one step.
    . (period) Decrease yellow brightness by one step.
