Accessing the Geometry Controls




To draw geometries, you work with the Secondaries menu.

To access the Geometry controls:

  1. In the Secondaries menu, click a Secondary button to enable it.

    Show small imageShow large image

  2. Enable Show.

    Show small imageShow large image

    If a geometry exists, it is displayed in the Player.

  3. Enable a geometry.

    Show small imageShow large image

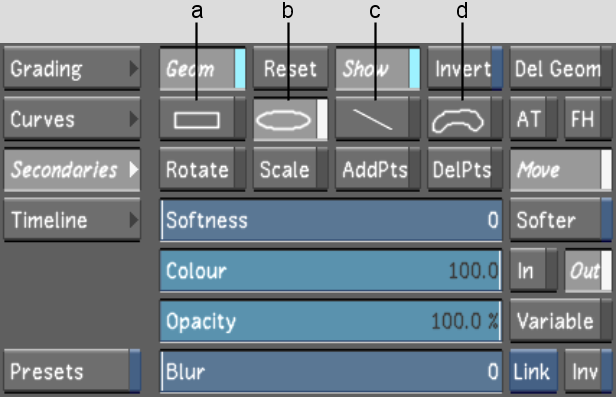

    (a) Rectangle geometry (b) Circle geometry (c) Split screen geometry (d) Free-form (bezier) geometry 

    NoteThe Keyer picker is automatically deactivated when a geometry is being created.
