Secondary Colour Grading > Adding and Deleting Axes >
The Axes List




The Axes list appears in almost all Lustre menus and provides a list view of geometries and their axes.

Show small imageShow large image

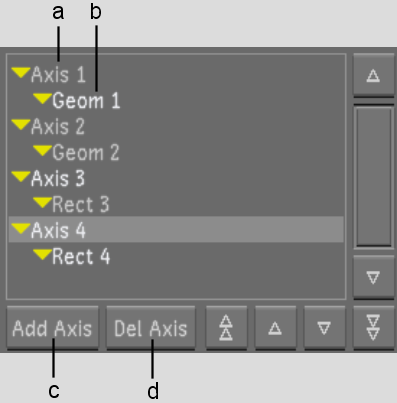

(a) Axis  (b) Geometry  (c) Add Axis button  (d) Del Axis button  

When you select the axis or the geometry in the Axes list, it is also selected in the Player. The inverse is also true.

To create a parent axis:

  1. In the Axes list, select the axis you want to parent. To select multiple axes, Shift-click each axis.
  2. Click Add Axis.

    The axes you selected are now parented to a new master axis.

To delete an axis:

  1. In the Axes list, select the axes you want to delete. To select multiple axes, Shift-click each axis.
  2. Click Del. Axis.

    The axis is deleted from the Player and the Axes list.
