Changing the Priority Order of Geometries

When you create several free-form geometries on a secondary layer, you can change the order in which they are drawn, or layered in the scene. This affects the resulting image because a geometry with a higher priority has precedence over one with a lower priority. You can use the priority order to create complex colour effects involving multiple geometries.

To set the priority of a mask:

Select the geometry.
Enable Schematic to display the priority order buttons.

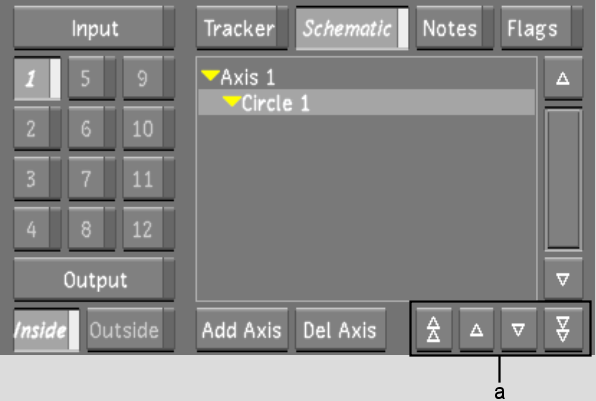

(a) Priority order buttons

Do any of the following.

Click:	To move the geometry:
	To the top layer.
	To the bottom layer.
	Down one layer.
	Up one layer.
