Grading in Linear Mode Using the Colour Grading Panel

Use the Colour Grading panel to modify lift, gain, and gamma in the low, mid, and high levels of the image, or across the entire image.

To colour grade in Linear mode using the Colour Grading panel:

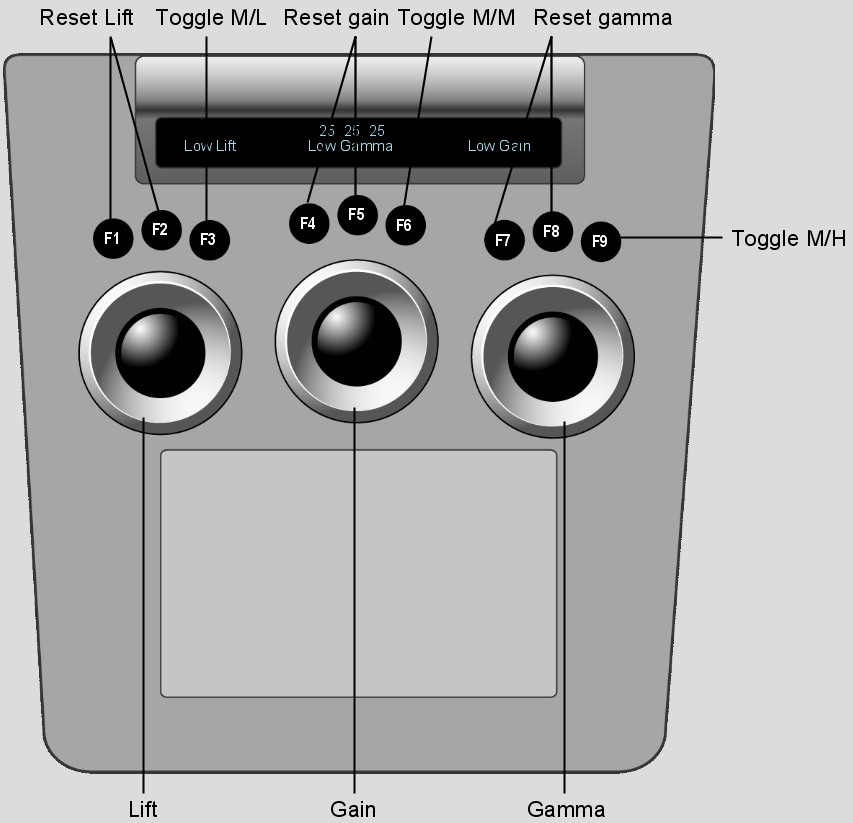

1. On the Colour Grading panel, use the following controls.




   Use:	To:
   First ring	Modify lift in the overall image. To reset, press the F1 button.
   First jog ball	Modify lift in a range of colours. To reset, press the F2 button.
   Second ring	Modify gain in the overall image. To reset, press the F4 button.
   Second jog ball	Modify gain in a range of colours. To reset, press the F5 button.
   Third ring	Modify gamma in the overall image. To reset, press the F7 button.
   Third jog ball	Modify gamma in a range of colours. To reset, press the F8 button.
   F3 button	Toggle between Master and Low levels.
   F6 button	Toggle between Master and Mid levels.
   F9 button	Toggle between Master and High levels.

Grading in Linear Mode Using the Function Panel

When the Grade menu is enabled, you can use the Function panel to:

• Modify hue, contrast, gain, and saturation values.
• Balance lift, gamma, and gain values for the red, green, and blue channels.
• Set black and white clip and reference values.

To colour grade in Linear mode using the Function panel:

1. Press the Grade button on the Navigation panel.

   The In Primary, Out Primary, Inside, and Outside options are activated.




2. Do one of the following:
   • Press the F1 option button to work on the initial primary grade.
   • Press the F2 option button to work on final curve modifications.
   • If you are colour grading a secondary, either a key or a geometry, use the numeric keys on the Navigation panel to select and enable a secondary layer. Press the number key once to select the layer, and then press it a second time to enable it. To enable layer 10, press the minus button (-). To enable layer 11, press 0. To enable layer 12, press the decimal button (.).
3. If you are accessing the Grade menu after having created a geometry or key, do one of the following:
   • Press the IN option button to grade inside the secondary.
   • Press the OUT option button to grade outside the secondary.

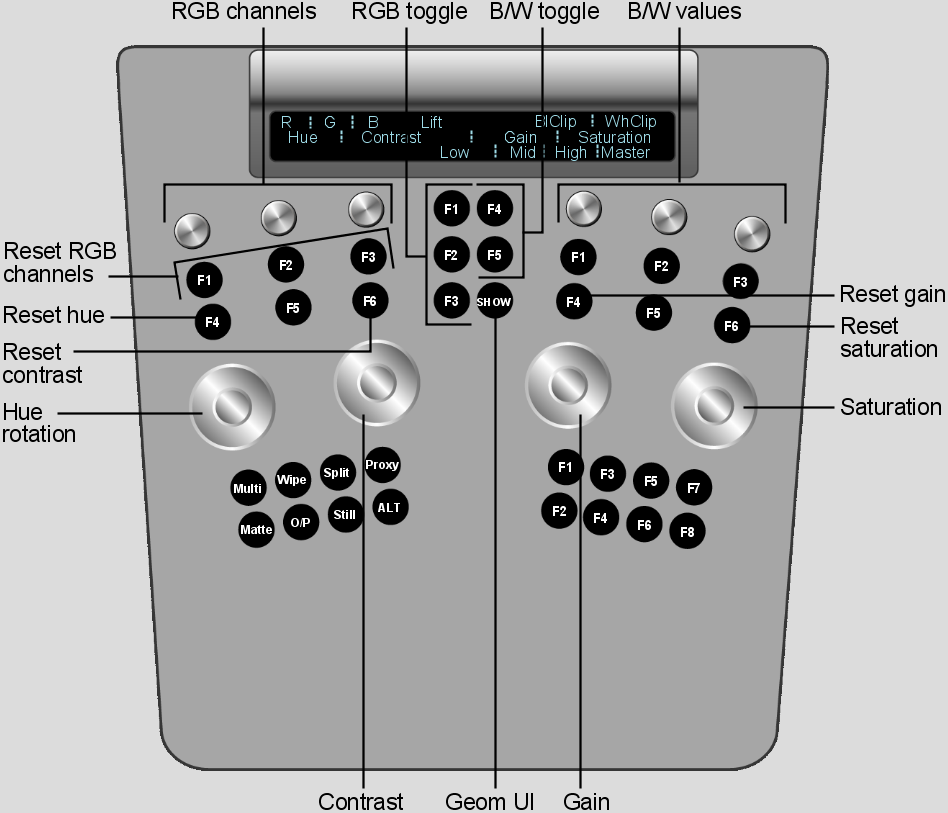

4. On the Function panel, use the following controls.




   Use:	To:
   Wheels	Modify overall hue, contrast, gain, and saturation. Wheel 1=Hue Wheel 2=Contrast Wheel 3=Gain Wheel 4=Saturation To reset a wheel, press the button above it.
   Knobs at top left	Balance the RGB channels. Knob 1=Red Knob 2=Green Knob 3=Blue To reset a knob, press the button below it.
   Buttons in left centre column	Toggle the type of value to be adjusted in the RGB channels (Knobs 1-3). F1=Lift F2=Gamma F3=Gain
   Knobs at top right	Define values to clamp minimum and maximum luminance. Knob 4=Black Knob 5=White
   Buttons in right centre column	Toggle the type of black and white values to be adjusted (Knobs 4-5). F4=Clip F5=Reference
   SHOW button	Toggle the geometry wireframe on or off.
