Creating Audio Fades in the Timeline




You can create an audio fade or crossfade in the same way you add a dissolve to video elements. When creating an audio fade, you specify the duration of the fade, the interpolation for the fade-in and fade-out, and the rate of the fade.

You can also create an audio fade to or from silence.

To create an audio fade:

  1. Select the cut where you want to add the fade.
  2. Click Fade (or press End).

    Show small imageShow large image

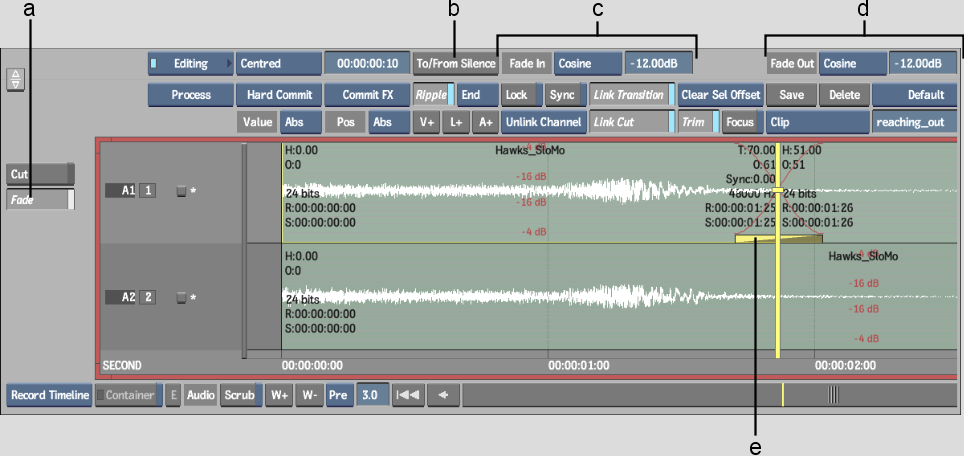

    (a) Fade button  (b) To/From Silence button  (c) Fade In controls  (d) Fade Out controls  (e) Fade icon  

    A fade icon is added to the timeline. If you enabled waveforms, the interpolation curves appear on the audio elements.

  3. Select and enable Editing in the Menu Priority box.
  4. Select the alignment.
  5. Set the transition duration.
  6. To create a fade that dips to silence then back, click To/From Silence.

    The fade icon is split into two separate fades. One fade ends at the cut and the other starts at the cut. You can control these fades separately.

  7. Use the Fade-out and Fade-in controls to select the interpolation and fade rate for the fade-out and fade-in.
    Select: To:
    Linear Create a linear fade. The slope of the fade curve is constant. See Linear Fades.
    Cosine Create a a fade with a cosine curve. You can modify the shape of the curve by adjusting the Rate value. See Cosine Fades.
    Exponential Create a fade with an exponential curve You can modify the shape of the curve by adjusting the Rate value. You can modify the direction of the curve by modifying the Alpha value. See Exponential Fades.

Linear Fades

When you create a linear fade, the rate of the fade-in or fade-out is constant. This may make the fade sound abrupt because the human ear is very sensitive to changes in loudness level. If you want to make a fade sound more natural, try using a cosine curve instead.

You can view the curve by selecting the dissolve icon and clicking W+. The curve appears on the audio element.

Show small imageShow large image

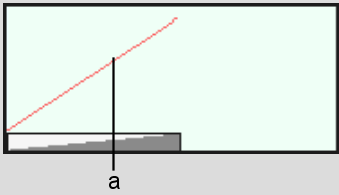

(a) Linear fade curve  

Cosine Fades

When you create a cosine fade, the default rate of the fade-in or fade-out eases in and eases out. This gives a more natural sounding fade because the beginning and ending of the fade is not as noticeable to the human ear (the majority of the fade occurs at the middle of the curve.) You can view the curve by selecting the dissolve icon and clicking W+. The curve appears on the audio element.

Show small imageShow large image

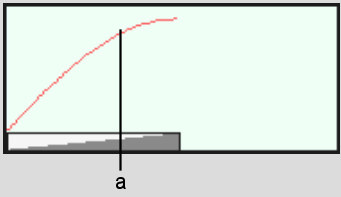

(a) Cosine fade curve  

When you create a cosine fade, a Fade Curve Rate box appears in the Dissolve menu.

Show small imageShow large image

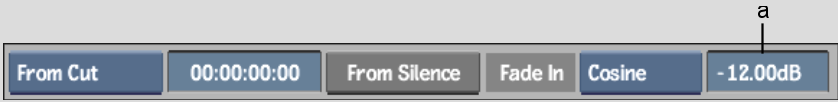

(a) Fade Curve Rate box  

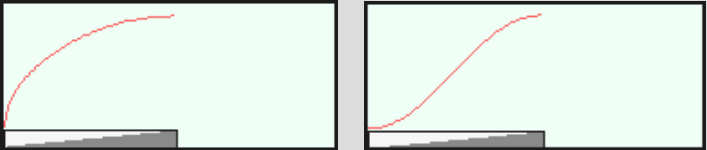

Use the Fade Curve Rate value to adjust the shape of the curve. The following illustrations show the difference between a cosine fade-in with a low curve rate, and a cosine fade-in with a high curve rate.

Show small imageShow large image

Fade Curve Rate = -0.01 dB      Fade Curve Rate = -12.00 dB

Exponential Fades

When you create an exponential fade, the default rate of the fade-in or fade-out is rapid at the beginning, and slows down at the end of the fade. You can view the curve by selecting the dissolve icon and clicking W+. The curve appears on the audio element.

Show small imageShow large image

(a) Exponential fade curve  

When you create an exponential fade-in, a Fade Curve Rate box and an Alpha box appear in the Dissolve menu.

Show small imageShow large image

(a) Alpha box  

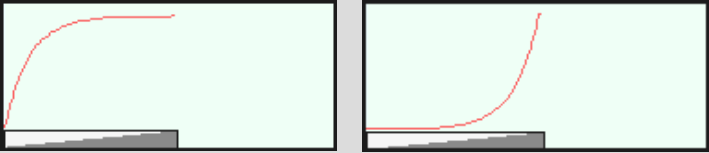

Use the Alpha value to adjust the shape of the curve. The following illustrations show the difference between an exponential fade-in with a negative alpha, and an exponential fade-in with a positive alpha.

Show small imageShow large image

Alpha = -1.00 dB          Alpha = 1.00 dB

Audio Crossfades

When you add a dissolve between two audio elements, you create a crossfade. When you add a crossfade, a Fade Curve Rate box and an Alpha box appear for both the fade-in and the fade-out. You can control the fade curve for each audio element independently.

Show small imageShow large image

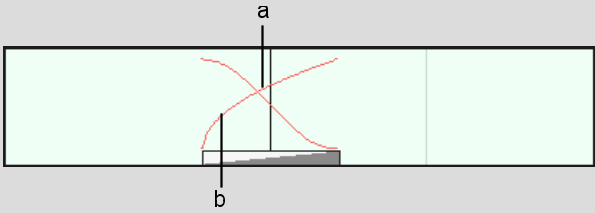

The following diagrams show a crossfade with an exponential fade-in and a cosine fade-out.

Show small imageShow large image

(a) Cosine fade-out  (b) Exponential fade-in  

Experiment with different fade-in and fade-out types to achieve the most natural sounding crossfade. For example, if the two audio elements are at noticeably different loudness levels, adjust the fade curves to get an even transition between the loudness levels.
