3D Keying Workflow

3D Keyer

Creating a Precise Key



Effects > 3D Keyer >

Accessing the 3D Keyer

You access the 3D Keyer from the processing pipeline of the Modular Keyer.

To access the 3D Keyer:

1. In the Main menu, click Effects.
2. In the Effects menu, click Modular Keyer.
3. Select a front clip, a back clip, and a key-in clip.

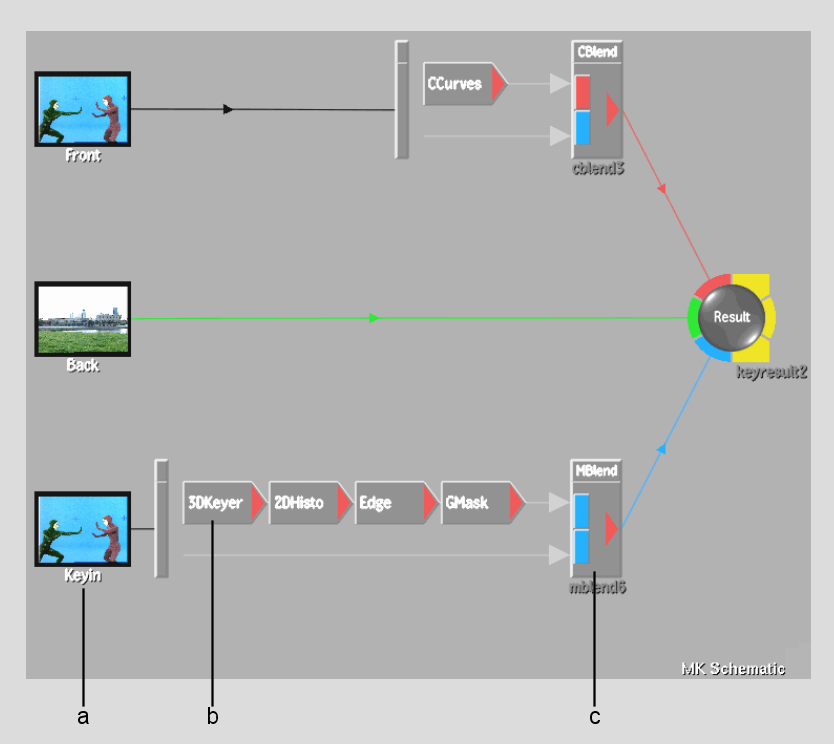

   The Modular Keyer schematic is displayed at the top of the screen.




   (a) Matte branch  (b) 3DKeyer node  (c) MBlend node  

4. Click the 3DKeyer node.

   The 3D Keyer menu appears.

5. From the Selection box, select Selected.

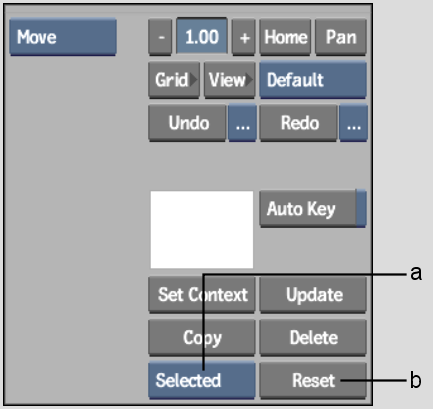

   (a) Selection box  (b) Reset button  

6. Click Reset.

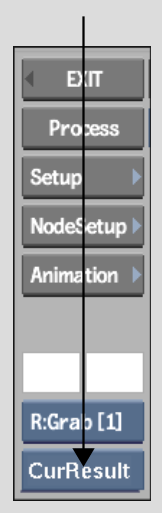

7. From the View box, select CurResult (or press F4) to view the input image for the 3D Keyer. When using the default processing pipeline in the Modular Keyer, this is the KeyIn clip.

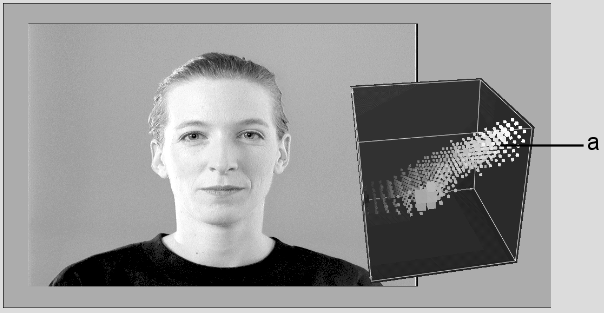

   The image window showing the KeyIn clip and the RGB viewer appears.




   (a) RGB viewer
