Colouring Channels and Folders

Use the Colour option in the Curve Functions box to change the colour of channels or folders. This is useful when you want to differentiate animation curves, or tracks.

The same colour is used for the channel in Channel, Track, and Info views.

To colour channels or folders:

1. Select the folders or channels to colour. See Selecting Multiple Keyframes and Channels.

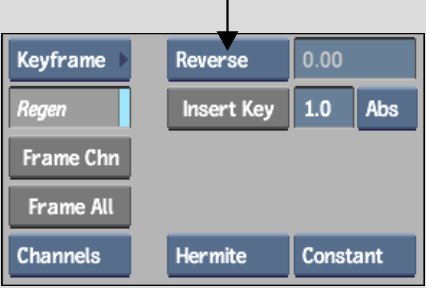

2. From the Animation Controls box, select Keyframe.
3. From the Curve Functions box, select Colour.

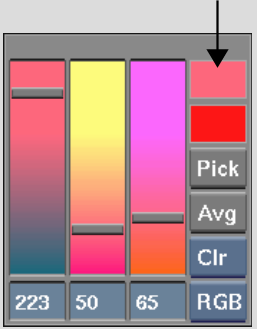

4. Use the colour picker that appears to select a colour.
5. Click the Current Colour pot.




   The colour of the selected channels, or all channels within the selected folder, changes. To cancel without colouring a channel, click the empty portion of the menu, above the colour picker.
