3D Compositing with Action > Action: Media > Modifying Media >
Processing a Matte




It is possible to output a matte for a selected media or for the entire scene. Use the Matte Output option box in the Media list to select between outputting no matte, a media's matte, or a scene matte.

NoteIn Batch, the Action node has two outputs, one result and one matte.

To process a media's matte:

  1. Select media from the Media list.
  2. Position the timebar where you want to begin processing the matte.

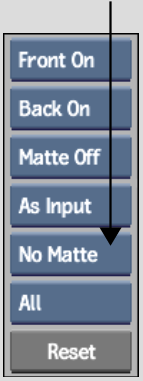

  3. Select an option from the Matte Output box.

    Show small imageShow large image

    Select: To Output:
    No Matte No mattes for the scene or media (default).
    MediaMatte A single media's matte. Grabs the media's processed matte and copies it directly to a frame buffer. Transformations to the media are not computed when processing the matte.
    SceneMatte A matte of the entire scene for selected media.

    If you select multiple media lines in the Media list, and select Scene Matte, you can output a combination matte for the selected media. 3D Geometries and particles are also output.

    BlendMatte A matte of the entire scene for selected media, but use the normal blend mode to respect a scene's transparencies.
  4. Click Process.

    The newly processed matte is placed on the Desktop.

NoteProcessing a SceneMatte may increase render times.
